Cylindrical Flexible LED Display Screen Indoor Outdoor Pantalla
Where are this pantallas led flexibles cylindrical display generally used?
TENSHANG flexible display led cylindrical screen has been widely used in various scenarios due to its 360° dead - angle - free display feature, unique shape design and good spatial integration. The following are its main application fields and characteristics:
1. Commercial display and retail scenarios: shopping mall atriums/halls, brand flagship stores, exhibitions/exhibition halls, etc.
2. Public spaces and transportation hubs: subway stations/railway stations, airport terminals, urban squares/landmark buildings, etc.
3. Entertainment and cultural tourism scenarios: theaters/concert halls, theme parks/science and technology museums, etc.
4. Office and high-end places: corporate halls/reception desks, high-end hotels/clubs, etc.
The core advantage of the cylindrical LED display lies in breaking through the limitations of flat surfaces, enabling all-round information transmission in three-dimensional space. It is especially suitable for scenarios that need to attract multi-directional attention and emphasize the sense of spatial design. With the development of technology, its resolution, refresh rate and interactivity are constantly improving, and its application fields are further expanding.

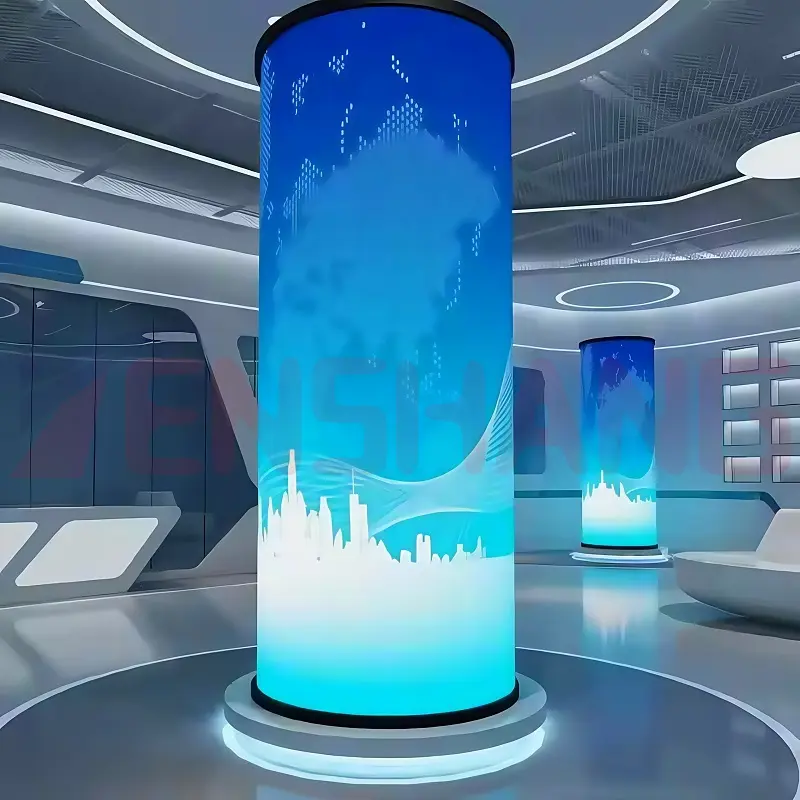

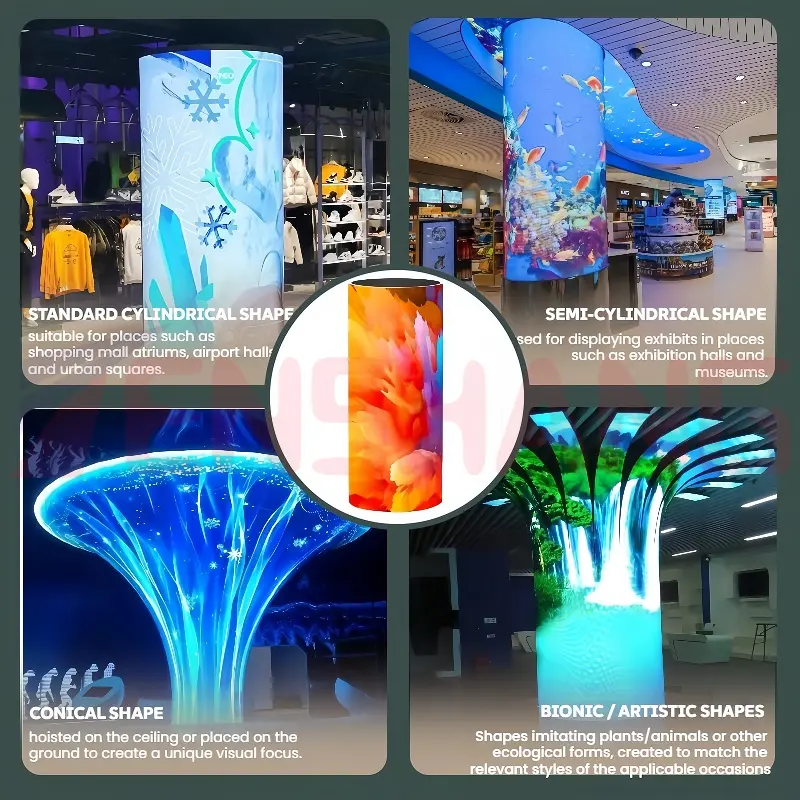

1. Standard cylindrical shape: The most common shape. The LED display on the surface of the cylinder can show content in 360°, giving a concise and smooth visual experience. It is suitable for places such as shopping mall atriums, airport halls, and urban squares, and is used to display advertisements, information, or works of art.
2. Semi-cylindrical shape: The cylinder is cut into two halves along the diametral plane to form a semi-cylindrical display. This shape can be installed on walls or in corners, etc., which can make use of space and provide a unique visual effect. It is often used for displaying exhibits in places such as exhibition halls and museums, allowing people to view the displayed content from the front and side.

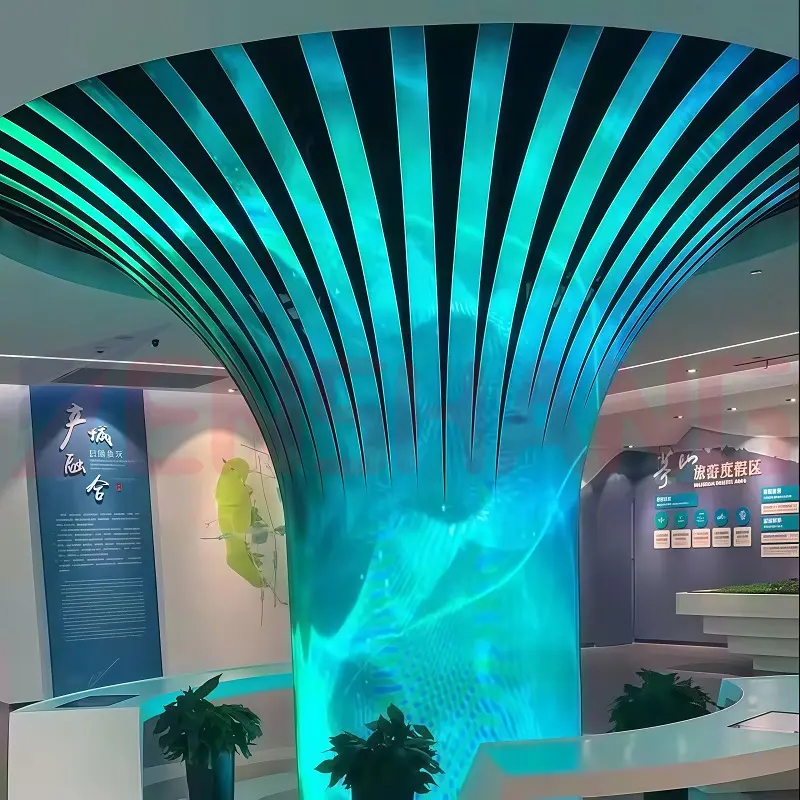

3. Conical shape: The top gradually shrinks to form a pointed top, similar to the shape of a cone. It can be hoisted on the ceiling or placed on the ground to create a unique visual focus. For example, in places such as bars and nightclubs, it can work with lights and music to create a cool atmosphere.

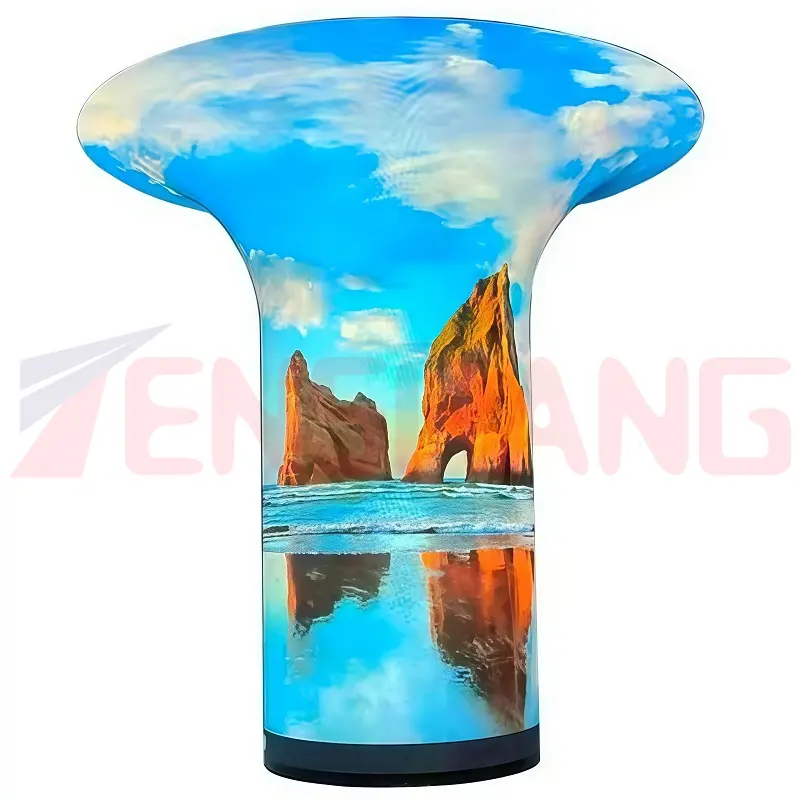

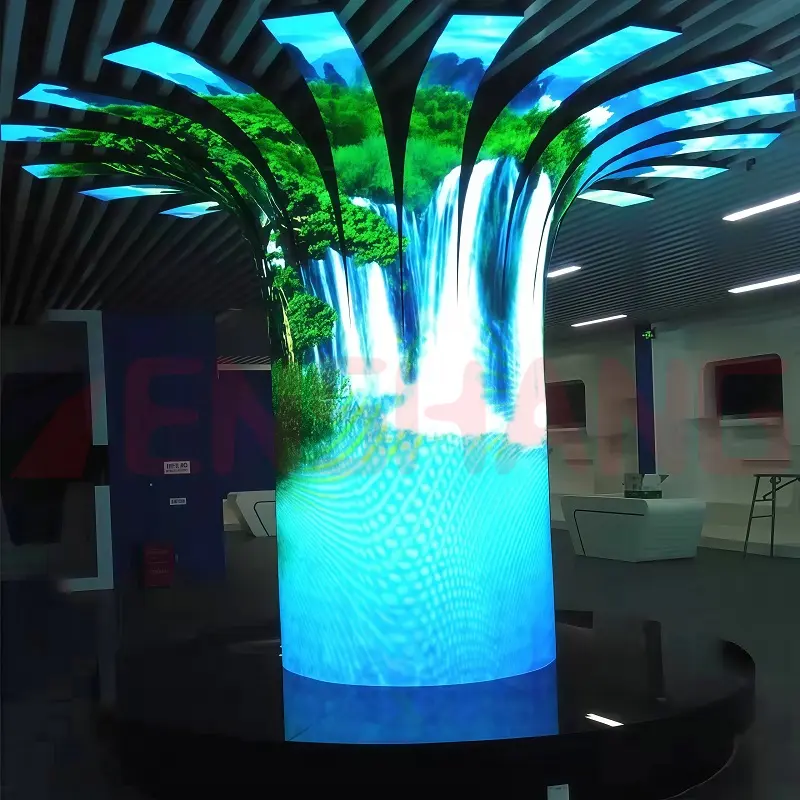

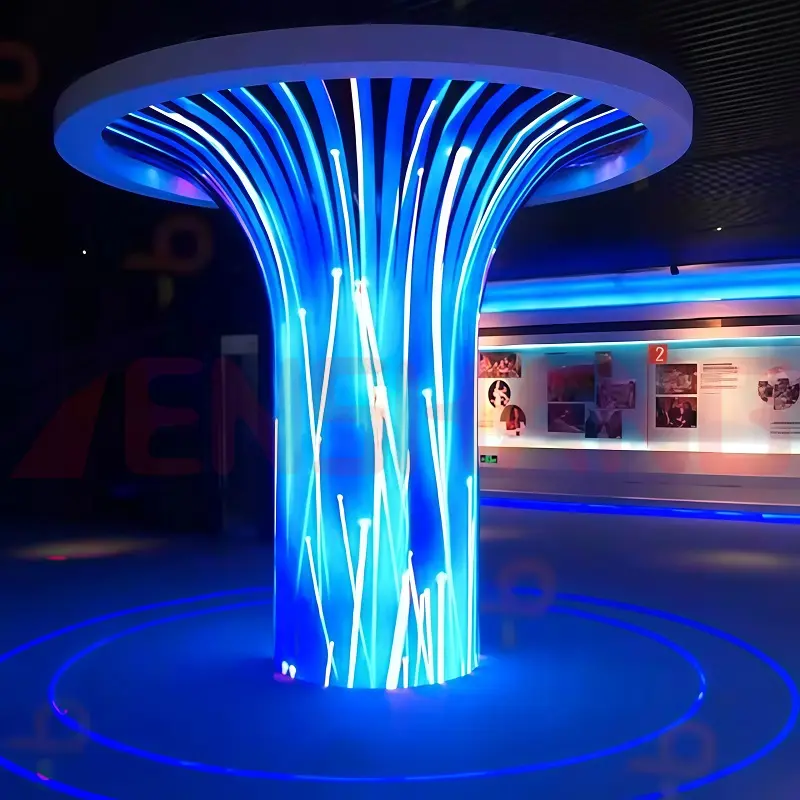

4. Bionic and artistic shapes: Shapes imitating plants/animals or other ecological forms, created to match the relevant styles of the applicable occasions.

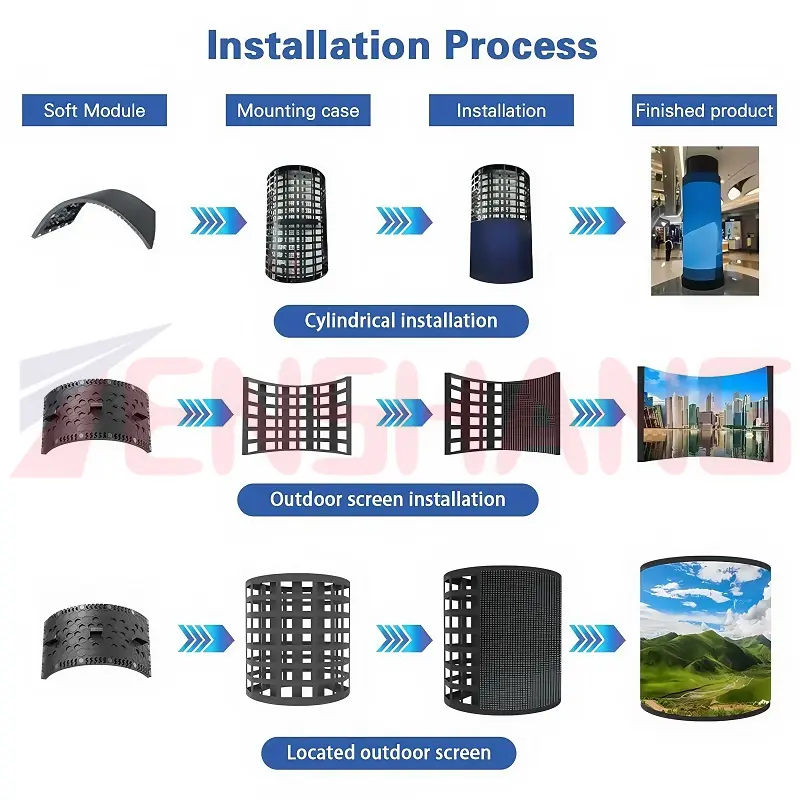

The installation method of cylindrical LED displays needs to be designed according to the usage scenarios (indoor/outdoor), spatial conditions (ground, ceiling, wall) and screen dimensions (diameter, height). The core goals are to ensure stability, safety and the integrity of the display effect. Common installation methods are as follows:

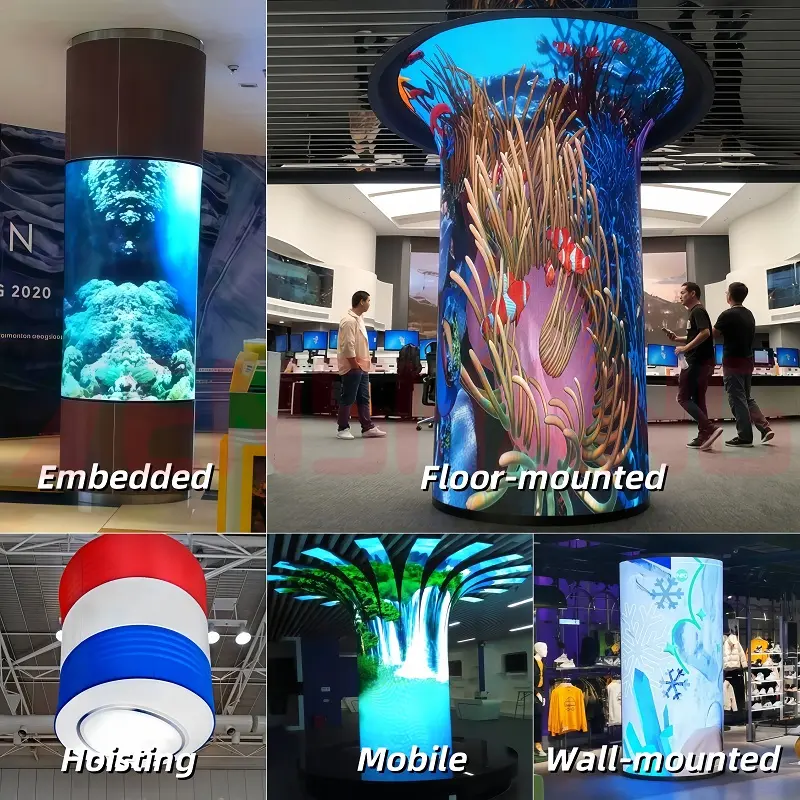

1. Floor-mounted installation
Applicable scenarios: Indoor halls (such as shopping malls, exhibition halls), outdoor squares and other areas with flat ground and sufficient space. It is especially suitable for cylindrical screens with a large diameter (≥1 meter) and a high height (≥2 meters).
2. Hoisting installation
Applicable scenarios: Indoor high-ceilinged spaces (such as airport halls, hotel lobbies), the top of exhibitions, or scenarios where ground space needs to be saved. It is suitable for screens with a medium diameter (0.5-2 meters) and light weight (≤500kg).
3. Wall-mounted installation (semi-cylindrical/arc-shaped)
Applicable scenarios: Wall-attached scenarios (such as shopping mall walls, corridor corners). Most of them are semi-cylindrical (with only a 180° display surface), suitable for designs with limited space or needing to integrate with the wall.
4. Embedded installation
Applicable scenarios: Customized architectural spaces (such as wrapping cylindrical columns, indoor art installations), which need to be designed integrally with the building structure.
5. Mobile installation
Applicable scenarios: Temporary events (such as exhibitions, press conferences, celebrations) that require flexible adjustment of positions.
Parameter of our cylindrical flexible led display panel
| TS0007-YZ | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm | 3mm | 4mm |
| LED | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Pixel Density (dot/㎡) | 64000 | 427186 | 288906 | 250000 | 160000 | 105625 | 62500 |
| Module size (mm) | 320X160 | ||||||
| Module Resolution | 256X128 | 208X104 | 172X86 | 160X80 | 128X64 | 104X52 | 80X40 |
| Shape (mm) | Customized | ||||||
| Material | Iron/Aluminum/Diecasting Aluminum | ||||||
| Scanning | 1/64S | 1/52S | 1/43S | 1/40S | 1/32S | 1/26S | 1/20S |
| Cabinet Flatness (mm) | ≤0.1 | ||||||
| Grey Rating | 14 bits | ||||||
| Application environment | Indoor / Outdoor | ||||||
| Maintain Service | Front & Rear | ||||||
| Brightness | 1000-3000 nits | ||||||
| Frequency | 50/60HZ | ||||||
| Refresh Rate | ≥3840HZ / 7680HZ | ||||||
| Power Consumption | MAX: 800Watt/sqm Average： 200Watt/sqm | ||||||
| Optional Resolution | P5 / P6 / P8 / P10 | ||||||
Video of cylindrical screen led flexible
Project case
FAQs
-
Q1. How is the "curvature" of a Flexible cylindrical LED display determined?
-
Q2. How to design resolution? Is 4K display supported?
-
Q3. What work needs to be done for daily maintenance?
-
Q4. How long is the service life generally? How to extend it?
-
Q5. Can special sizes or irregular combinations (such as dual-cylinder linkage) be customized?
-
Q6. What is the weight and thickness of the flexible screen? Is it suitable for hanging or high altitude installation?
