Football Stadium Perimeter Led Screen Display Advertising Billboard
Features of football stadium perimeter led screen display

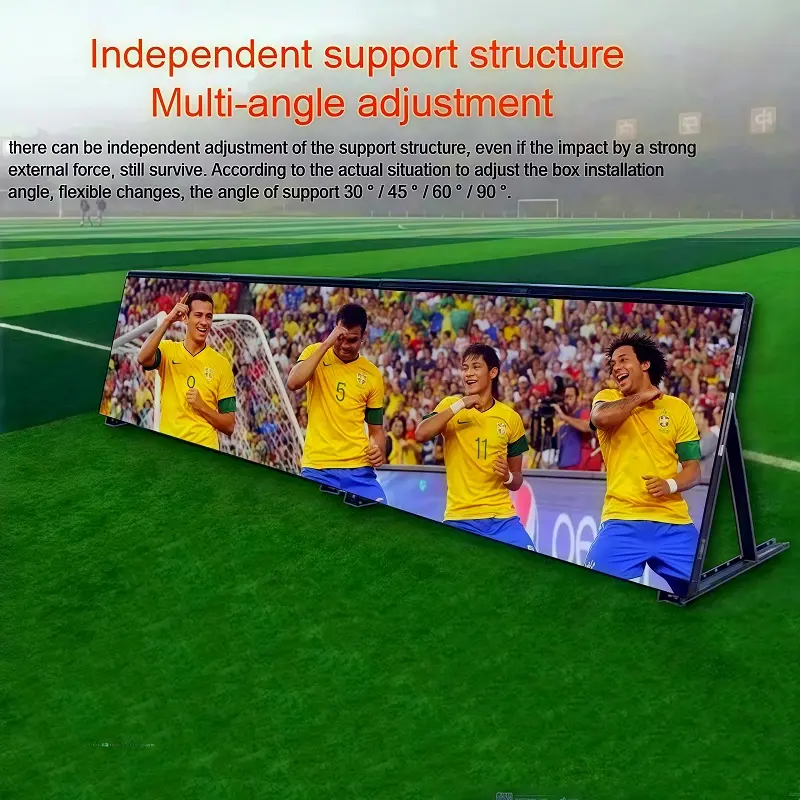

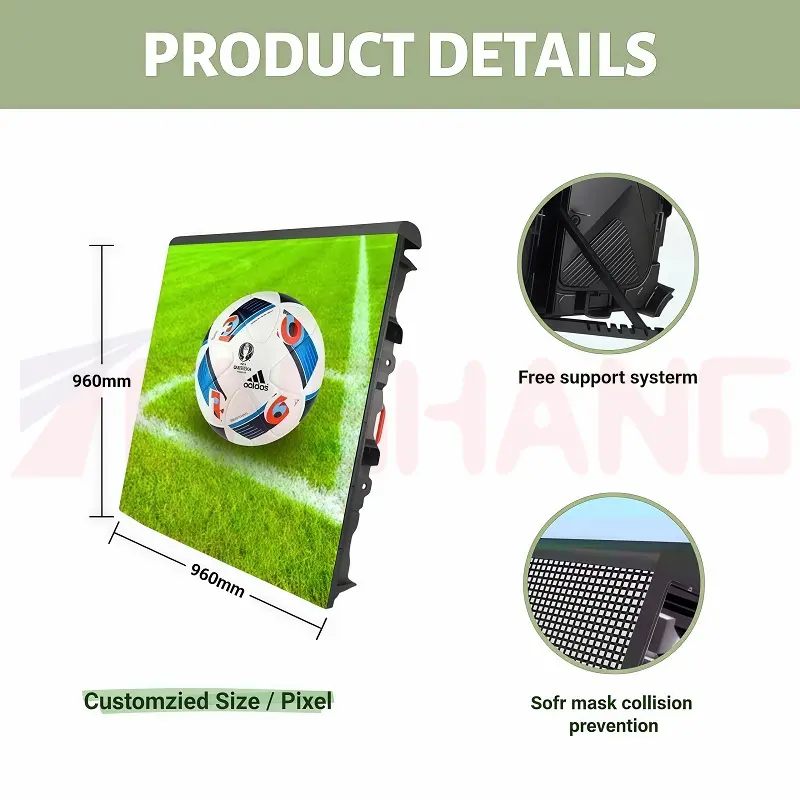

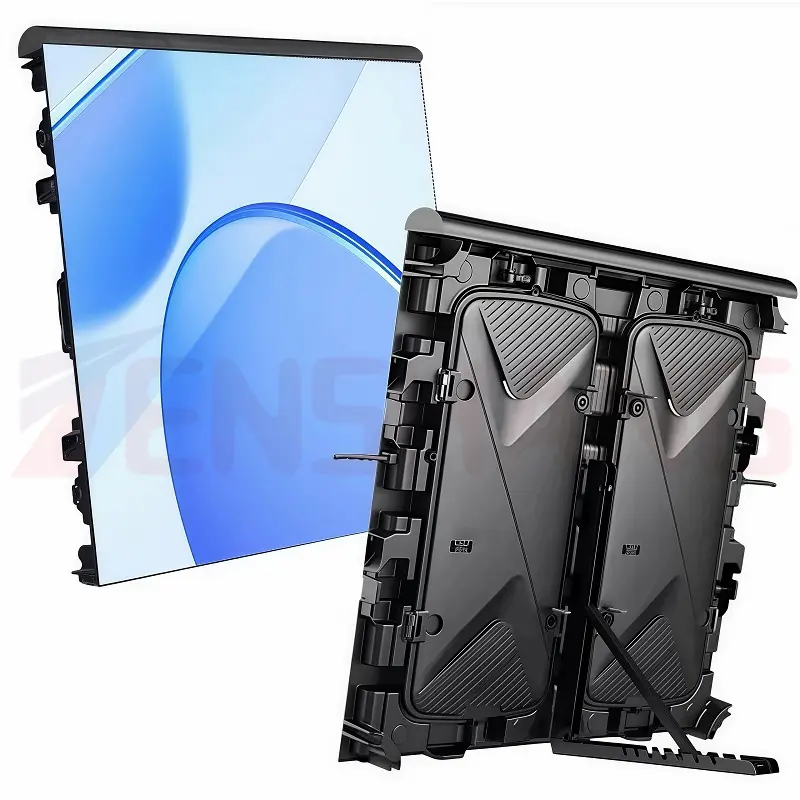

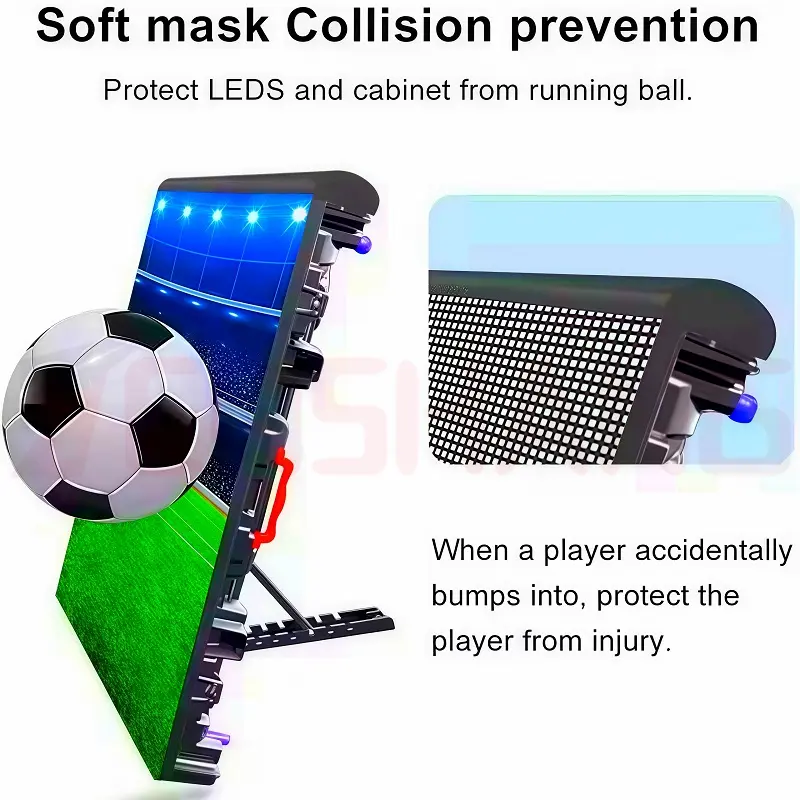

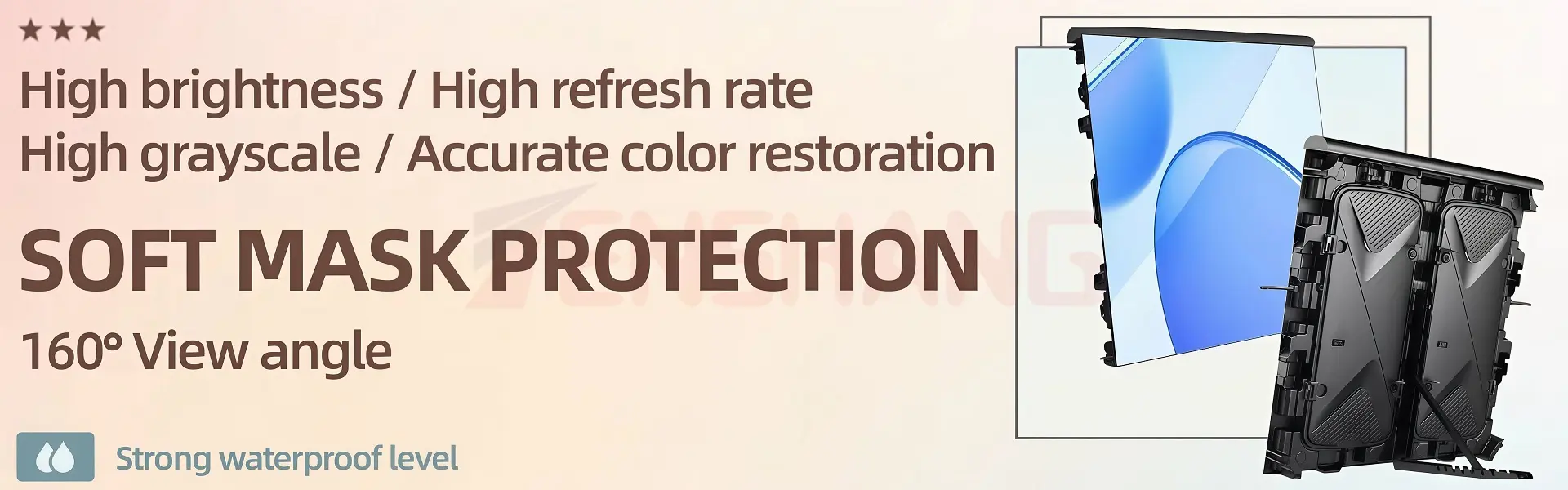

LED stadium screen refers to an outdoor digital display installed around a stadium or arena. It consists of a group of light emitting diodes (LEDs) to display dynamic video, graphics and text. It has high brightness, high refresh rate, high grayscale, accurate color restoration, and can present delicate and realistic pictures. It is made of aluminum alloy material and soft mask protection, which has excellent collision resistance and can prevent players from accidentally hitting and damaging the screen. There is a support frame on the back, which allows flexibly adjusting the screen angle. The screen protection level for outdoor use can reach IP65 or above, and can withstand the test of harsh environments such as wind, rain, dust, etc. The viewing angle can reach 160°, which allows the audience in every position in the stadium to have a good viewing experience.
Event information display: It can be connected to the referee system and the timing and scoring system to display the game time, scores, player information, etc. in real time, and can also introduce the game rules, schedule and other contents.
Video playback: It can play live game screens, slow motion replays, exciting scene close-ups, etc., bringing the audience a better viewing experience, and also providing the referee with the basis for assisting the penalty.
Advertising display: It has powerful commercial advertising display function, can play various advertising content, provide a promotional platform for event sponsors, and increase the commercial value of the event.
Parameter of Led stadium perimeter billboard
| TS0004-960MAX-Z | P4 | P5 | P8 | P10 |
| Pixel Pitch | 4mm | 5mm | 8mm | 10mm |
| Lamp Beads | SMD1912 | SMD1912 | SMD2525 | SMD3535 |
| Density (Pixels/㎡) | 62,500 | 40,000 | 15,625 | 10,000 |
| Module Size (mm) | 320*160 / 320*320mm | |||
| Cabinet Size (mm) | 960*960*130 | 960*960*130 | 960*960*130 | 960*960*130 |
| Scanning | 1/8 Scan | 1/8 Scan | 1/5 Scan | 1/4 Scan |
| Brightness | 5000 nits | 5000 nits | 6000 nits / 7500nits | 6500 nits / 8000nits |
| Viewing Angle | H 140°, V140° | H 140°, V140° | H 140°, V140° | H 140°, V140° |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Input Voltage | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Application | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 | Front IP65, Rear IP54 |
| Cabinet Weight (KG) | 32 | 32 | 32 | 32 |
| Maintenance Way | Rear Access | Rear Access | Rear Access | Rear Access |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Certificates | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
Videos of football stadium perimeter led display

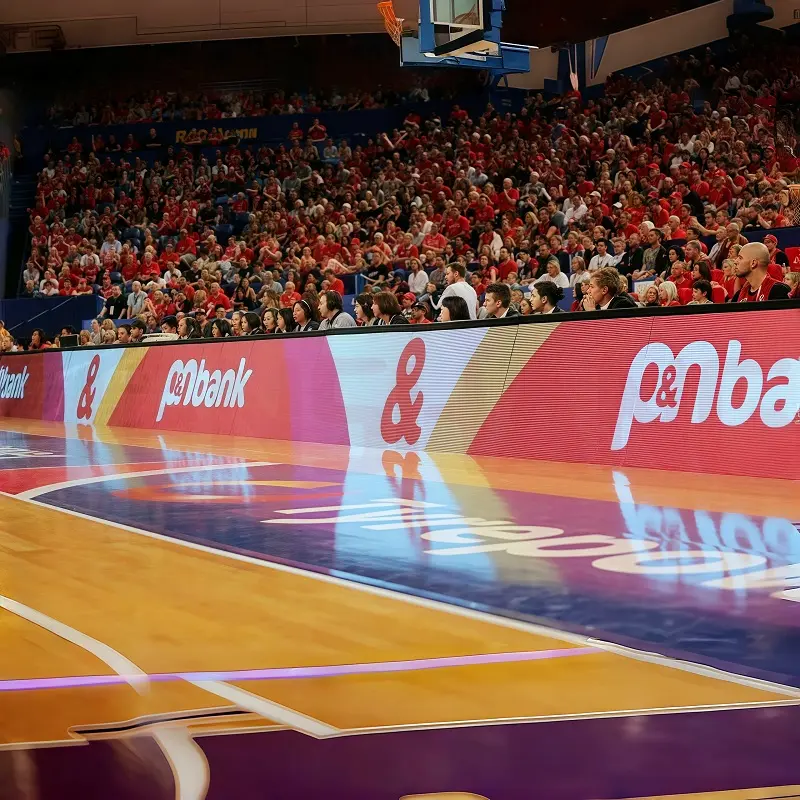

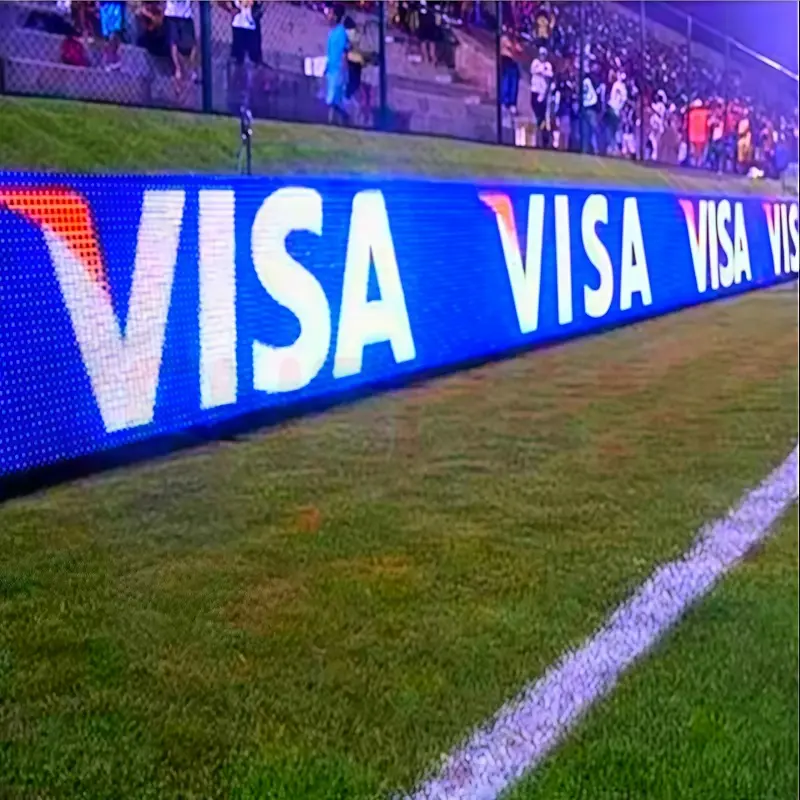

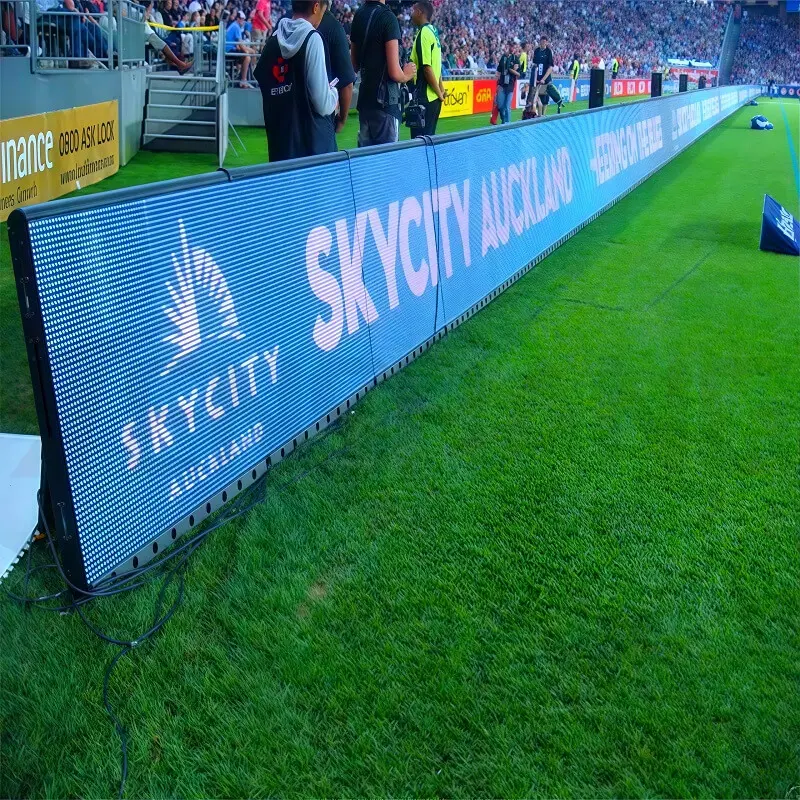

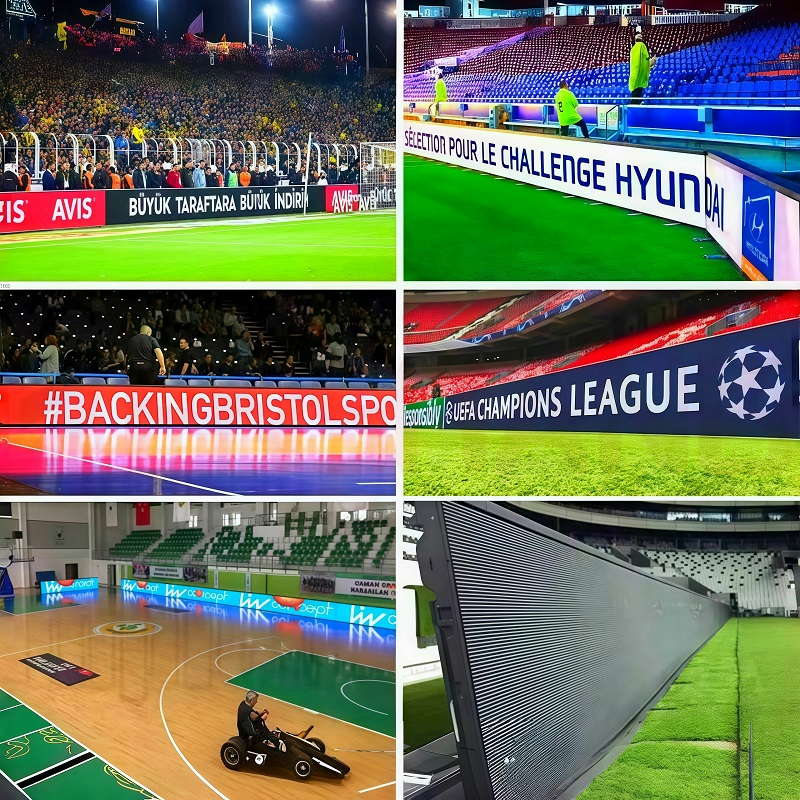

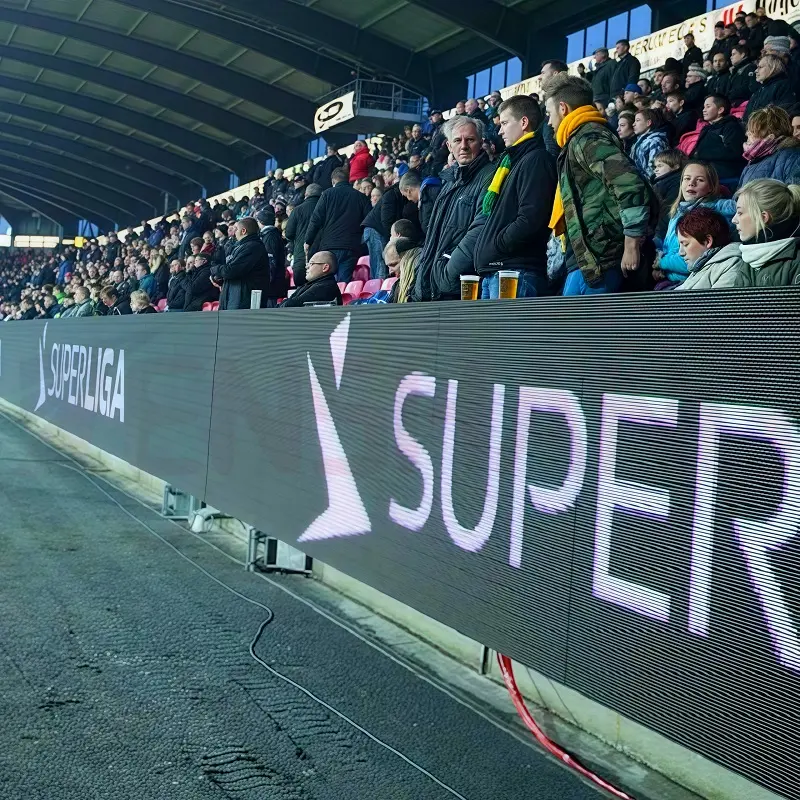

Project case of stadium live football perimeter led display
FAQs
-
Q1. Will frequent impacts cause damage to the led stadium perimeter display?
-
Q2. How to choose "pixel spacing"?
-
Q3. How long does the LED court screen last? How to prolong life in daily use?
-
Q4. Can the outdoor stadium perimeter led display work normally in heavy rain, high temperature and low temperature environments?
-
Q5. How to adjust the brightness of the stadium perimeter led panel boards?
-
Q6. What formats of video files can be played on the stadium live football perimeter led display?
Most stadium live football perimeter Led display support common video formats such as MP4, AVI, MOV, etc.
