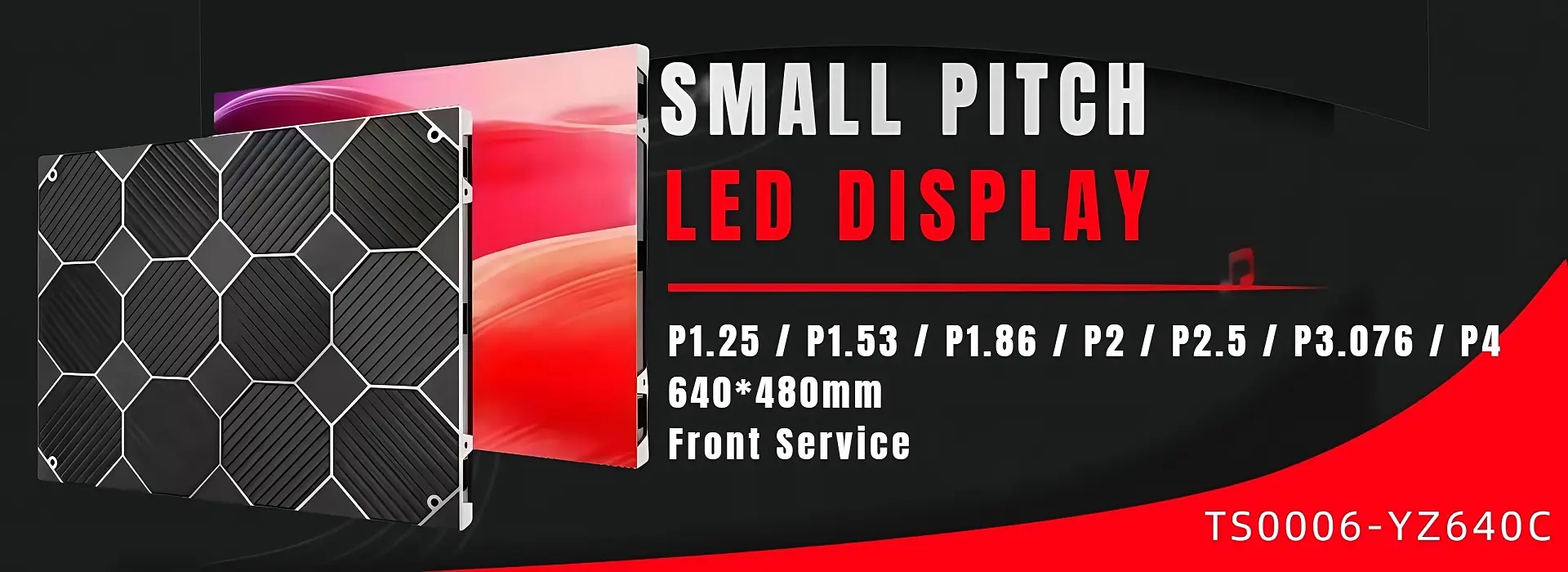

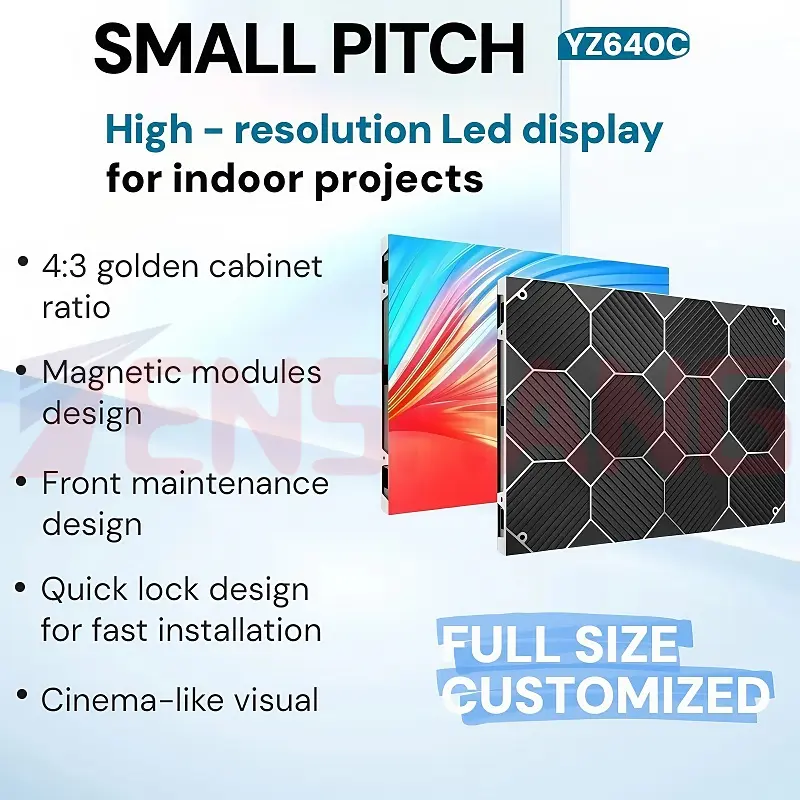

Indoor Led Video Wall Fine Pitch Front Service Panel
Descriptions of TERNSHANG led wall panel indoor?

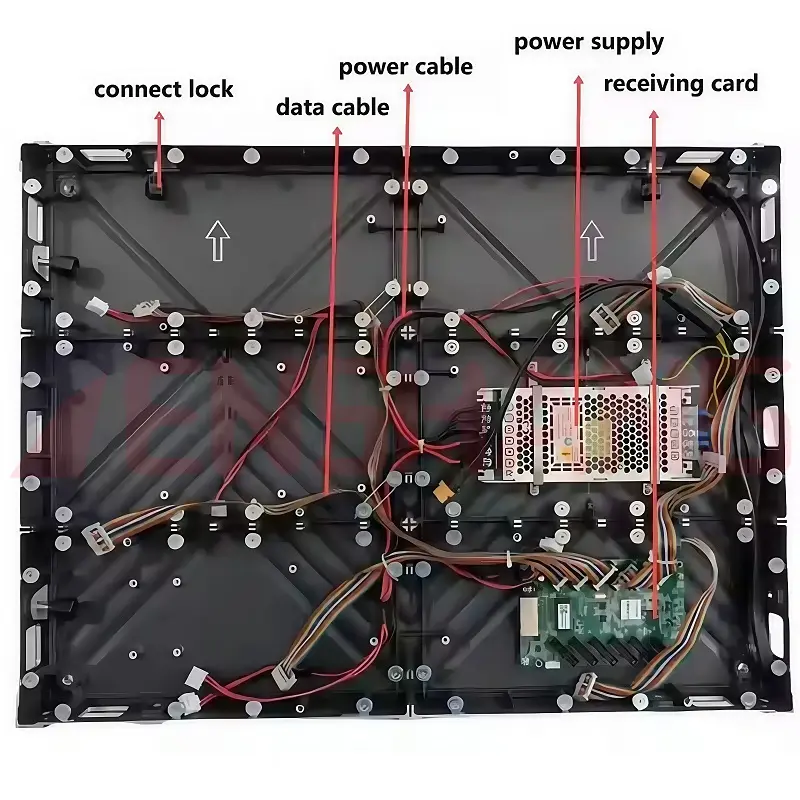

The front maintenance of LED indoor displays refers to a maintenance method in which operations such as installation, disassembly, and overhaul are performed from the front (viewing side) of the display. Compared with traditional rear maintenance (which requires operations from the back of the display), it shows significant advantages in many scenarios. Its core advantages lie in high space utilization, convenient maintenance, lower costs, and stronger safety. It is particularly suitable for indoor scenarios with limited space and high requirements for maintenance efficiency and display integrity. However, front maintenance has higher requirements for the structural design of the module (such as locks and cable interfaces). When choosing, a comprehensive consideration of the specific usage scenario and product quality is necessary.

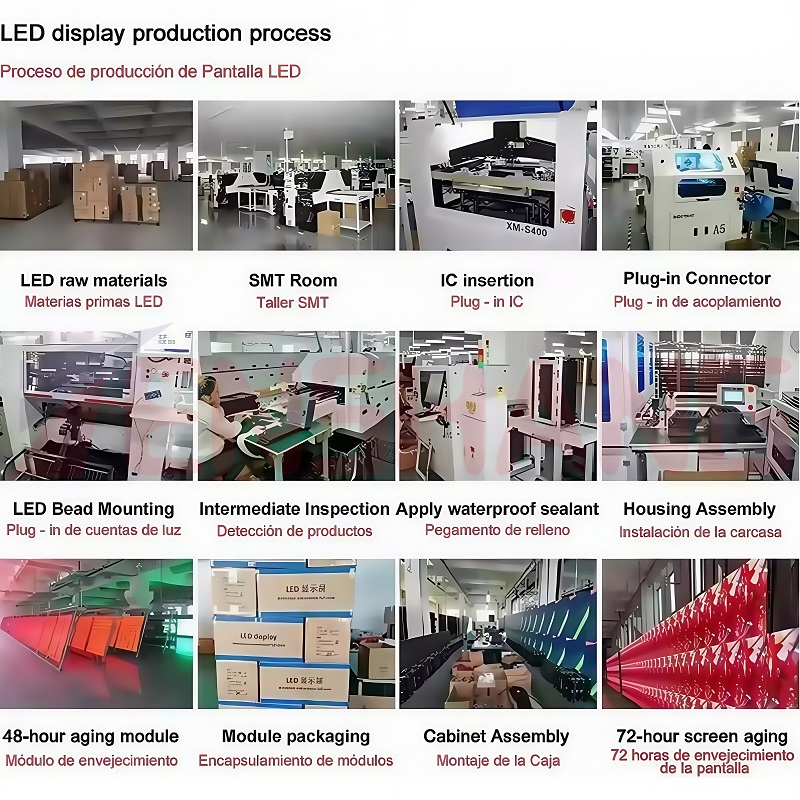

As a professional LED display manufacturer, TENSHANG's strict control over the entire product process is the key to ensuring quality. It starts with building a solid first line of defense for quality in the incoming material inspection, ensuring that core components (such as LED lamp beads, driver ICs, PCB boards, etc.) meet performance standards. Then, in the precision process of LED module placement, it guarantees the stability and consistency of component welding, reducing issues like cold solder joints and wrong solder joints. Furthermore, through standardized assembly procedures, it ensures the coordinated adaptation of components such as modules, power supplies, and control systems. Finally, comprehensive tests (such as brightness uniformity, color consistency, anti-interference performance, high and low-temperature operation, etc.) are conducted to verify product performance. This series of standardized processes not only reflects TENSHANG's focus on production details but also directly ensures the stability of LED displays during long-term use, providing customers with reliable display solutions.
This full-chain quality control model is particularly important for products like LED displays that have high requirements for precision and durability. It can not only reduce the risk of failures in later use but also extend the product's service life and enhance its market competitiveness.

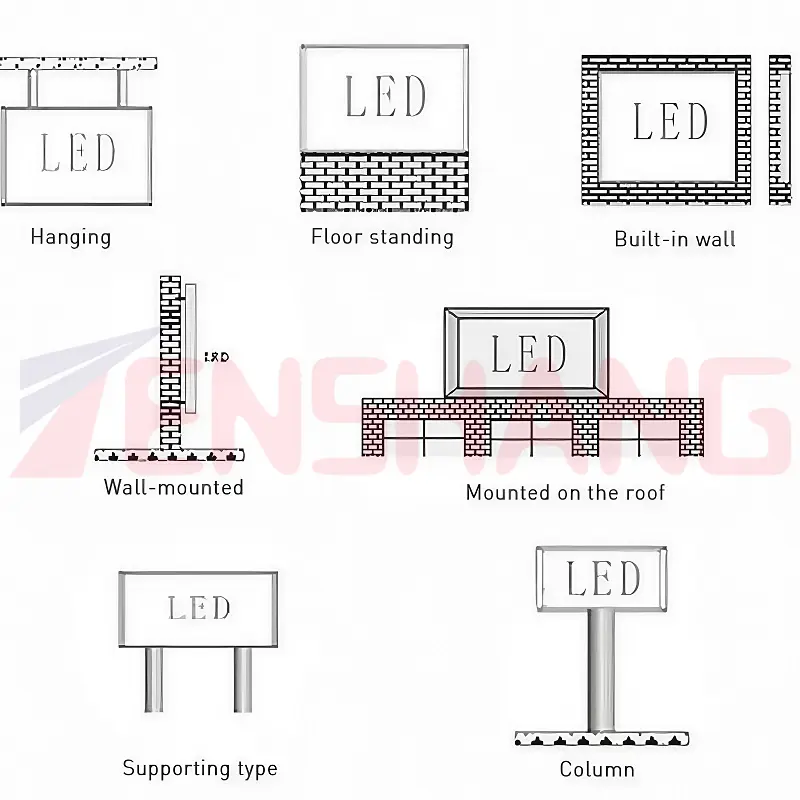

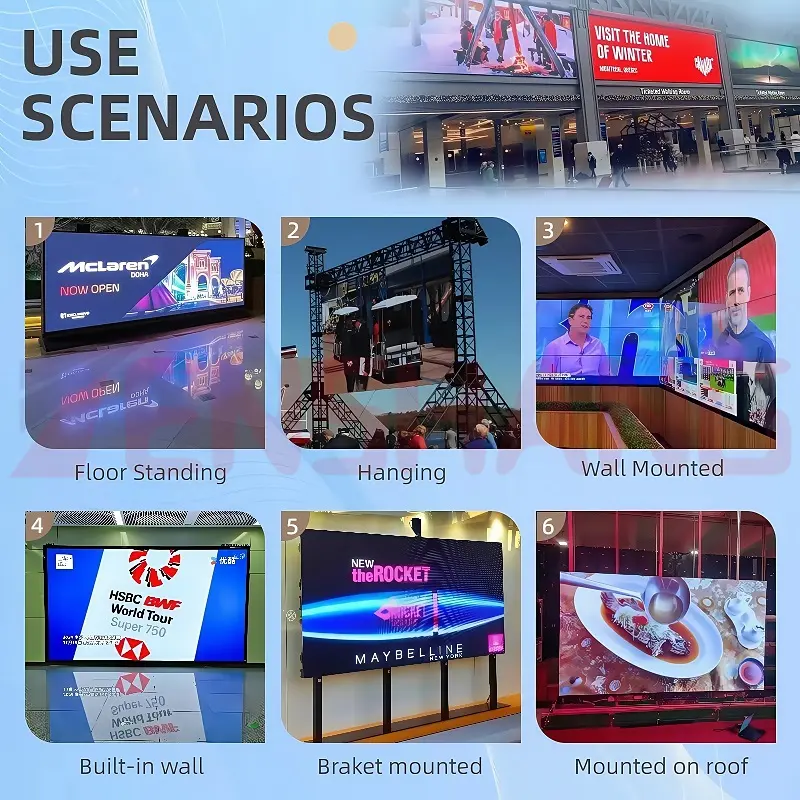

When choosing the installation method for an indoor LED display, comprehensive consideration should be given to spatial conditions, load-bearing capacity, display requirements, maintenance convenience, and service life:
- For fixed locations (such as conference rooms and command centers), wall-mounted or embedded installation is preferred;
- For large and open spaces (such as stadiums), hoisting or floor-standing installation is suitable;
- For temporary scenarios or events, rental installation is prioritized;
- For special shape requirements, customized curved/irregular installation is needed.
Meanwhile, on-site surveying must be conducted before installation to ensure structural safety (in terms of load-bearing, wind resistance, shock resistance, etc.) and compliance with electrical specifications (such as wiring and heat dissipation).
LED video wall pantalla rental parameter
| TS0006-YZ640C | P1.25 | P1.53 | P1.86 | P2 | P2.5 | P3.076 | P4 |
| Pixel Pitch | 1.25mm | 1.53mm | 1.86mm | 2mm | 2.5mm | 3.076mm | 4mm |
| Lamp Beads | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Density (Pixels/㎡) | 640,000 | 422,500 | 288,906 | 250,000 | 160,000 | 105,688 | 62,500 |
| Module Size (mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |

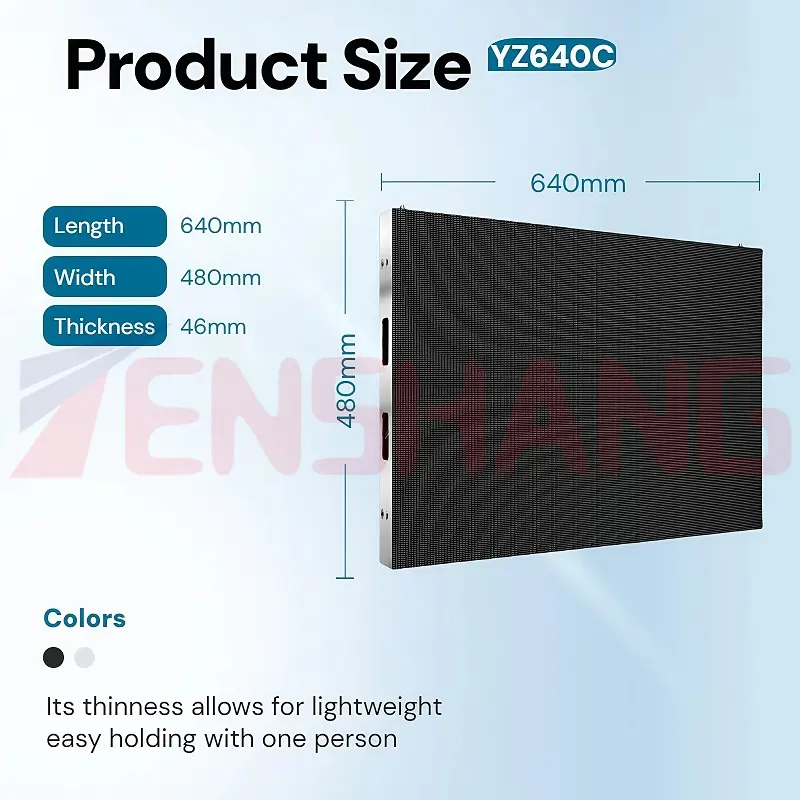

| Cabinet Size (mm) | 640*480*60 | 640*480*60 | 640*480*60 | 640*480*60 | 640*480*60 | 640*480*60 | 640*480*60 |
| Module Resolution (Pixel) | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 |
| Driving Mode | 1/64 Scan | 1/52 Scan | 1/43 Scan | 1/40 Scan | 1/32 Scan | 1/26 Scan | 1/20 Scan |
| Brightness | 600 cd/㎡ | 600 cd/㎡ | 600 cd/㎡ | 700 cd/㎡ | 800 cd/㎡ | 800 cd/㎡ | 700 cd/㎡ |
| Viewing Angle | 140° | 140° | 140° | 140° | 140° | 140° | 140° |
| Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Refresh Rate | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz | 3840Hz/7680Hz |
| Input Voltage | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 580 | 580 | 580 | 439 | 457 | 413 | 351 |
| Avg. Power Consumption (W/㎡) | 195 | 195 | 195 | 150 | 153 | 138 | 117 |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Application | Indoor IP31 | Indoor IP31 | Indoor IP31 | Indoor IP31 | Indoor IP31 | Indoor IP31 | Indoor IP31 |
| Cabinet Weight (KG) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| Maintenance Way | Front Service | Front Service | Front Service | Front Service | Front Service | Front Service | Front Service |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Certificates | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
Video of YZ640C led display indoor

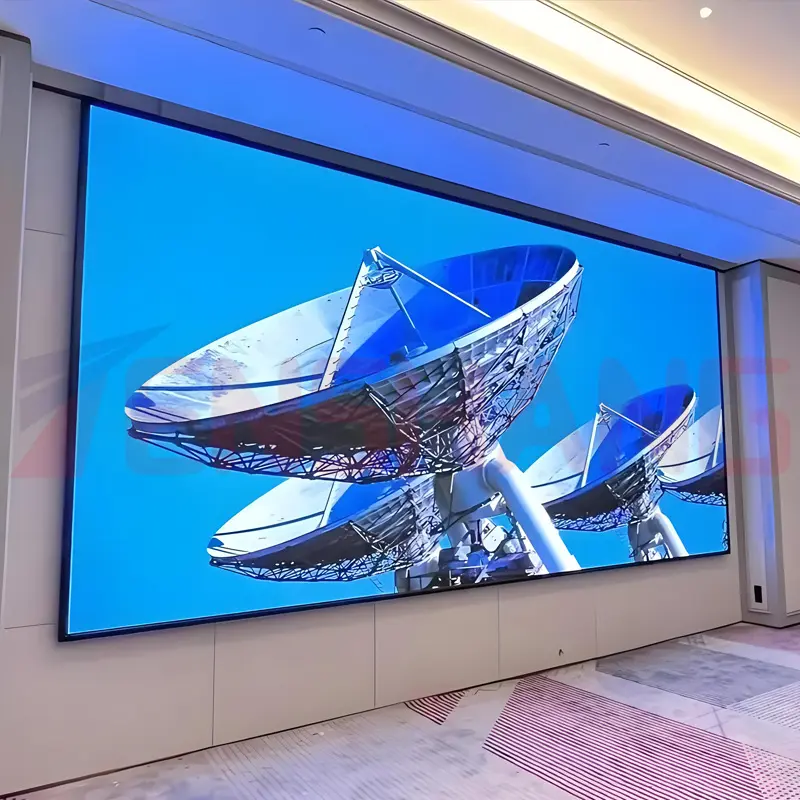

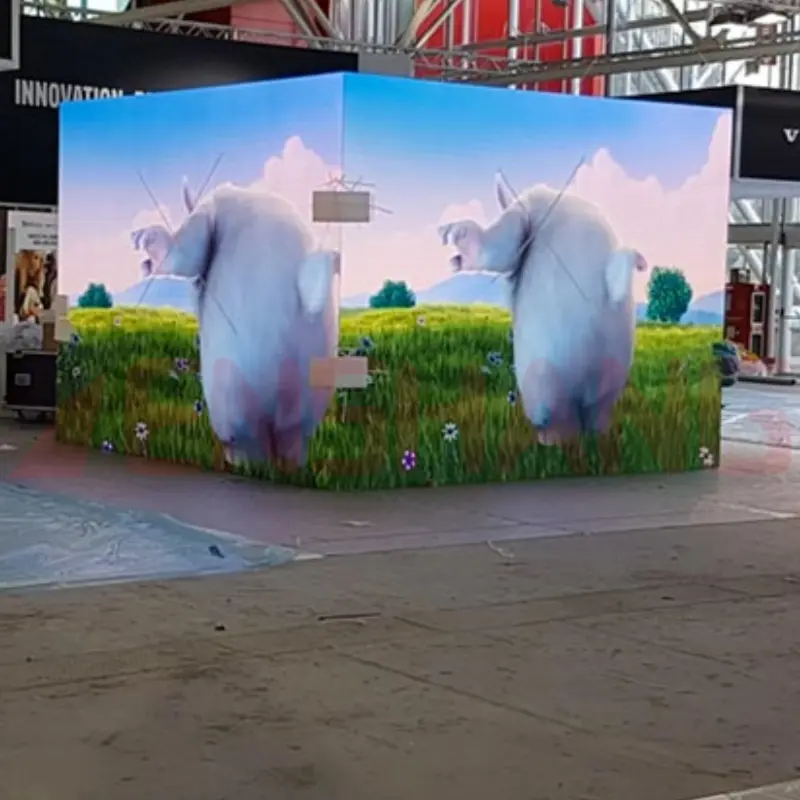

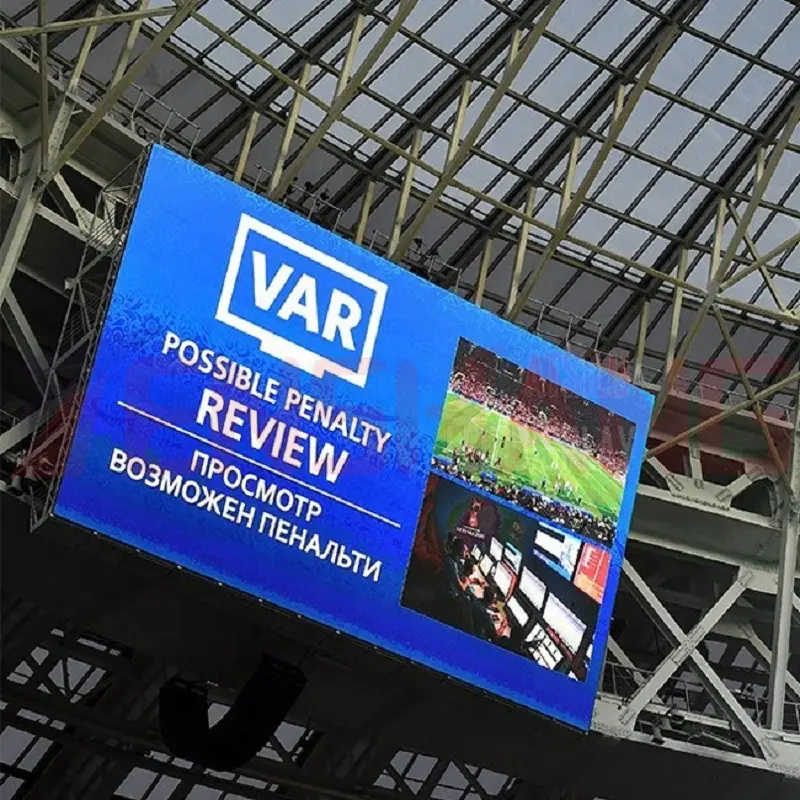

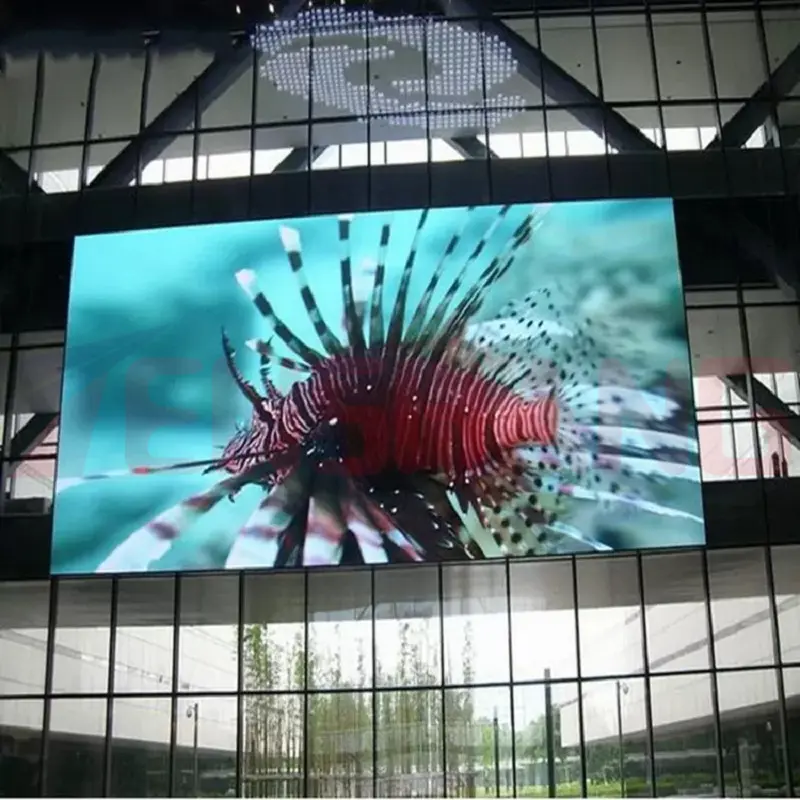

Project case of hd led screen indoor
FAQs
-
Q1. What impact does "refresh rate" and "grayscale level" have on display effects?
-
Q2. Can LED indoor screens display 4K/8K resolution?
-
Q3. My living room / conference room / store wants to install LED screen, what size is appropriate?
-
Q4. How to choose SMD and COB display technology?
-
Q5. How brightness is appropriate for indoor LED display?
-
Q6. What are the installation methods for indoor LED displays?
-
Q7. If the indoor led screen fails, is it easy to repair?
-
Q8. Can indoor LED displays be connected to computers, game consoles and other devices?
The TENSHANG indoor LED display supports various interfaces such as HDMI and DP. It can connect to computers, game consoles and other devices. After connection, it can play content in the device.
