Magic Cube Led Display Screen WIFI USB 3D Advertising
Where are Cube Led Screen usually used?
TENSHANG high resolution 3d led cube is a creative LED display device with a Rubik's Cube structure as the design prototype. It combines multiple LED panels to form each face of the cube. Each face is an independent display screen that can synchronize or independently display content, and can present dynamic pictures from multiple angles, reaching 360° all-round visual coverage. The cube LED display screen breaks the plane limitations and combines spatial vision with digital technology, becoming an impactful display tool in modern business, cultural and technological scenarios, especially suitable for brands and activities that pursue innovative experience. Creative application scenarios such as shopping malls and exhibitions as eye-catching devices, concerts, dramas and other scenes, and present an immersive visual experience in combination with music and performances.
360° all-round visual coverage
The three-dimensional structure of the cube enables the content to be viewed from any angle without visual dead angle, which is suitable for public places with large flow of people (such as the atrium of shopping malls and exhibition centers) to ensure that visitors from different directions can obtain information.
High flexibility and adaptability

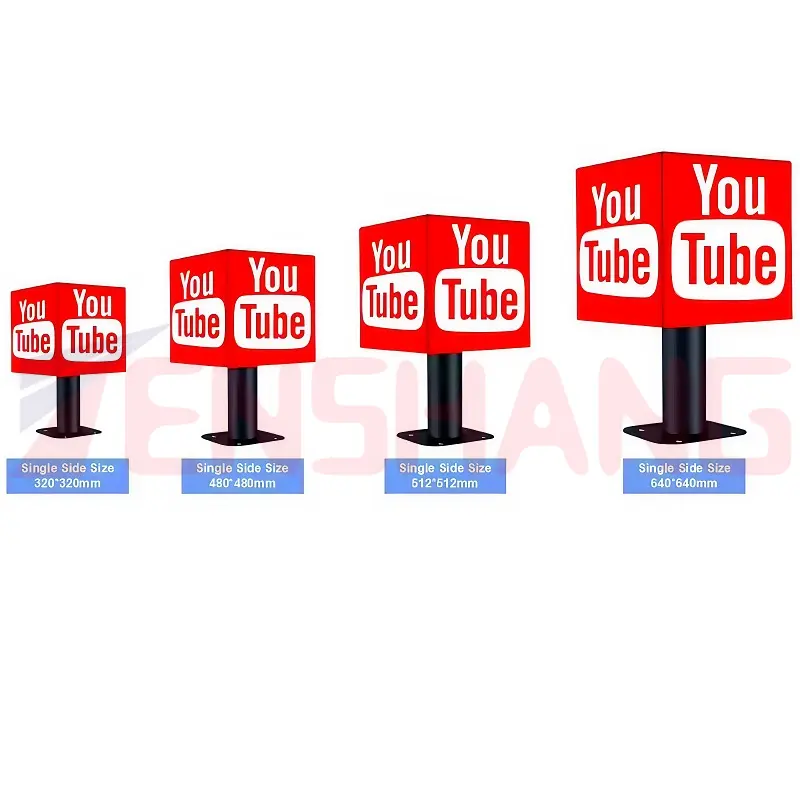

1.Adjustable size: from small desktop display (side length 30cm) to large outdoor devices (side length several meters).
2.Scene adaptation: The number of faces can be disassembled or increased or decreased according to needs (such as using only 4 faces to form a semi-open structure) to adapt to narrow spaces or special layouts.
1.High-definition picture quality: Pixel spacing (P1.2-P5) is optional, P2-P3 is commonly used in indoor scenes, and P4-P5 is commonly used in outdoor scenes to ensure delicate picture quality.
2.High refresh rate: Refresh rate above 3840Hz, dynamic pictures have no lag or flickering, suitable for high-speed photography and live broadcast scenes.
3.Environmental adaptation: Supports waterproof and dustproof (IP65 grade), and can be used for outdoor or indoor environments with high flow.

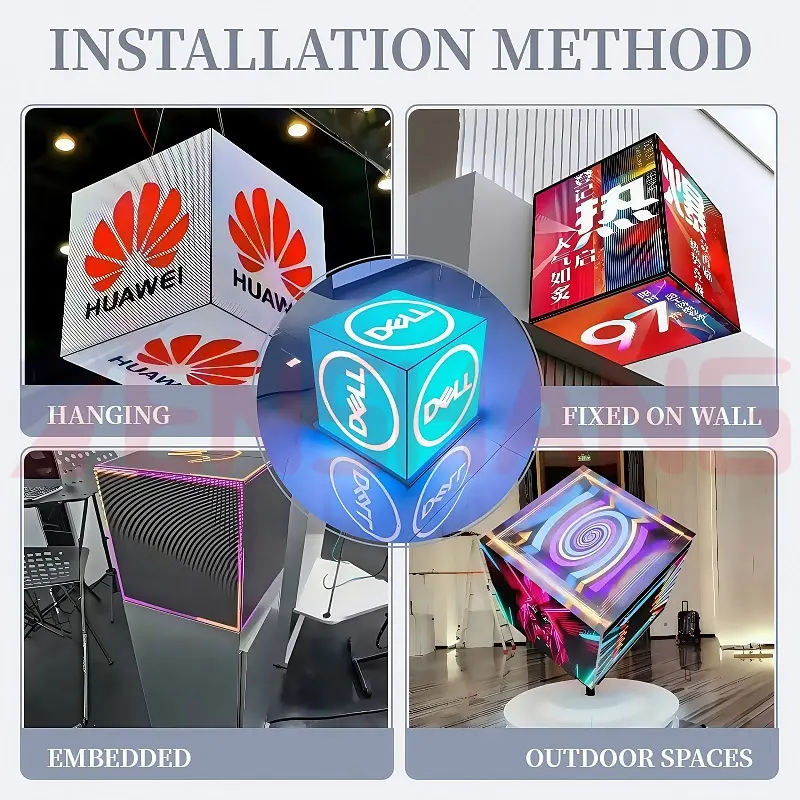

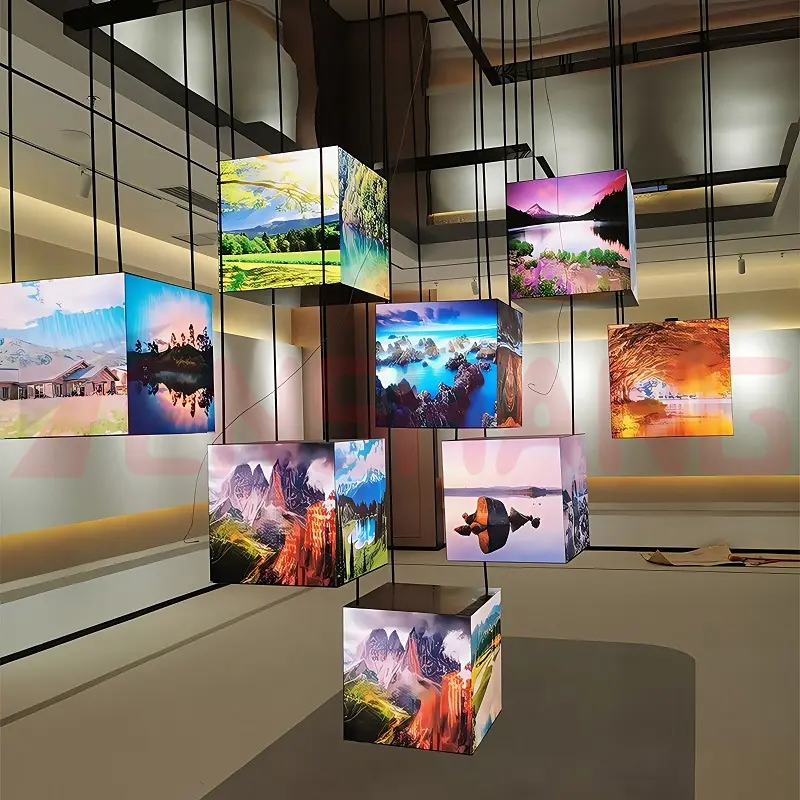

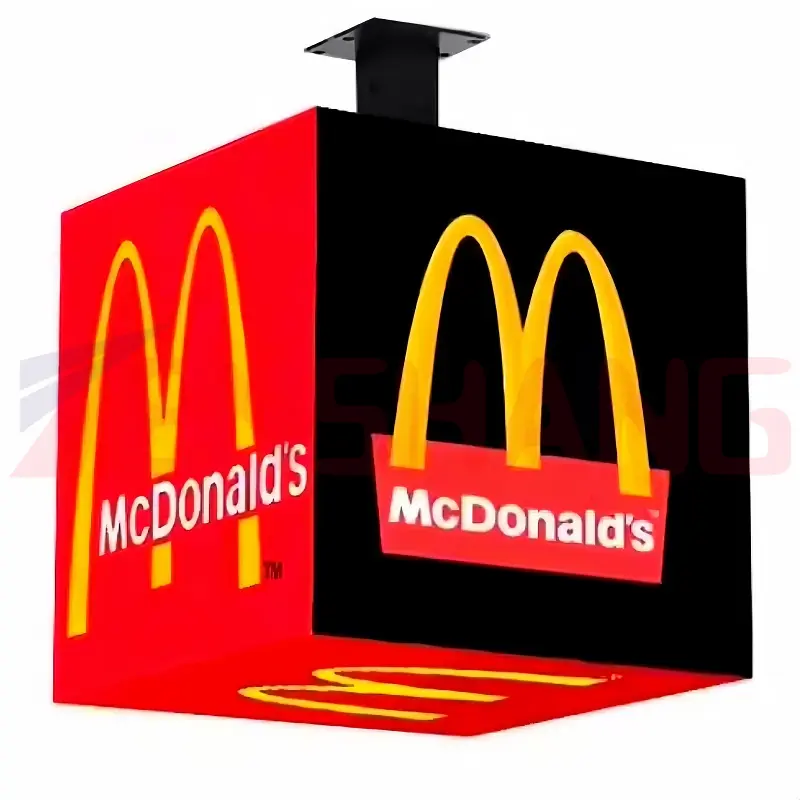

1.Suspension installation (lifting)
Application: indoor shopping malls, exhibition halls, stages, airports and other high-altitude hanging scenes, or outdoor temporary activities (such as concerts, exhibitions).
Features: It does not occupy ground space, can be viewed from multiple angles, suitable for scenes that require dynamic display.

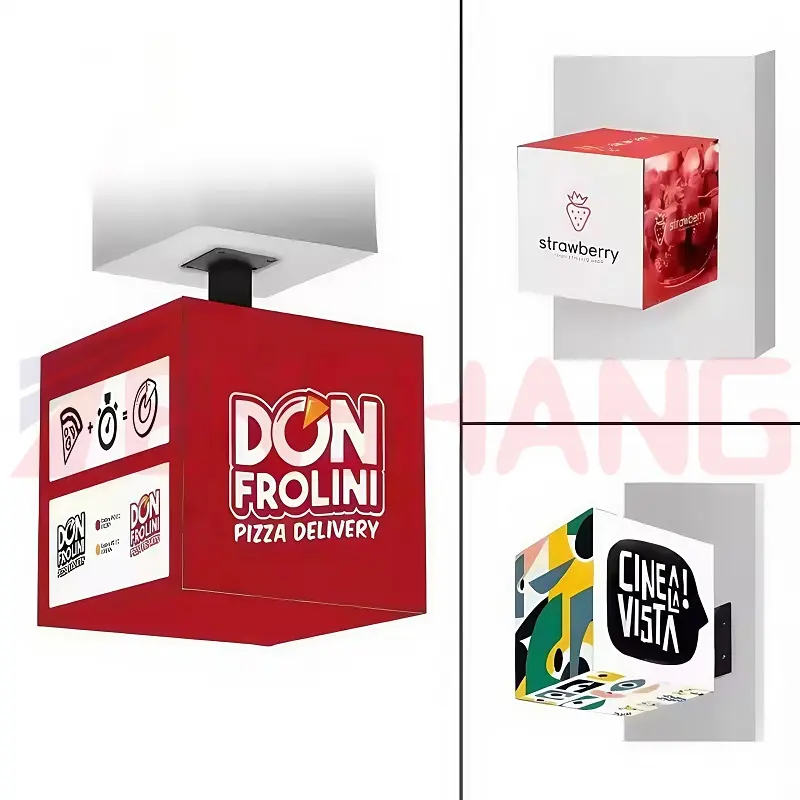

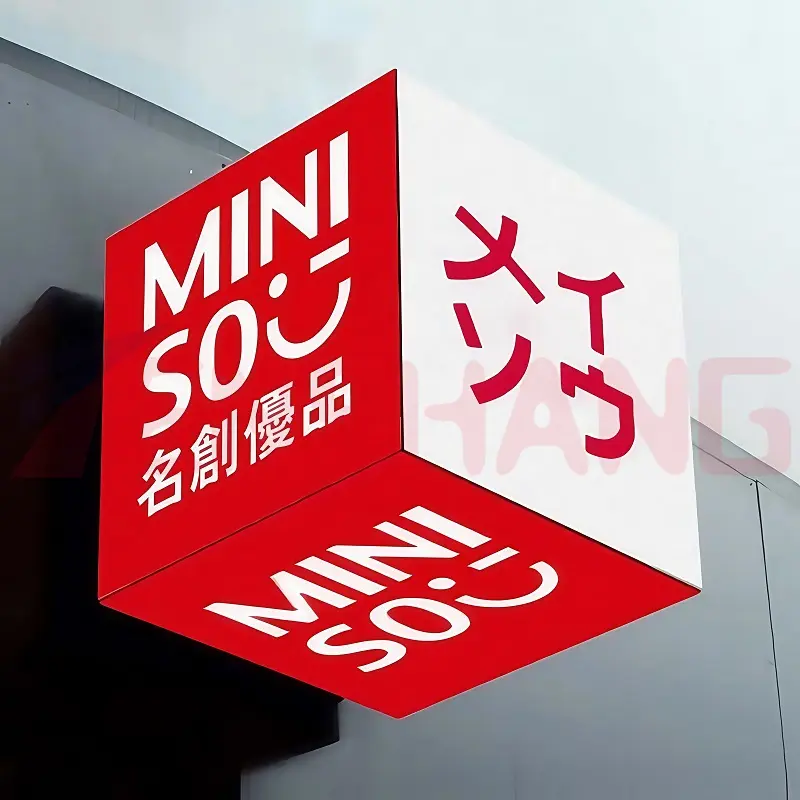

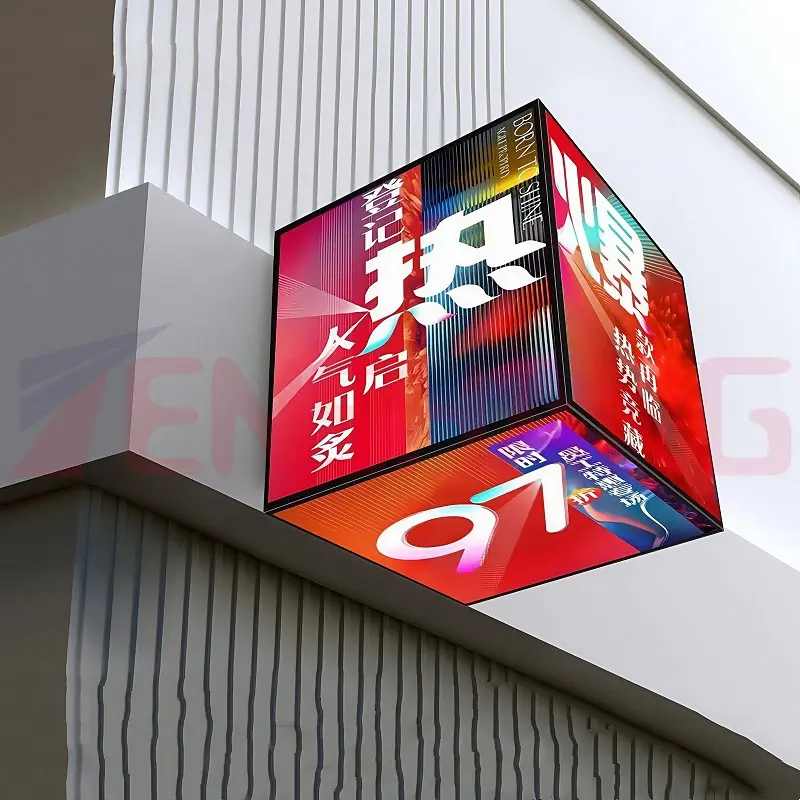

2. Fixed on wall
Application: Mainly used for brand or advertising display in front of store doors or in shopping mall counters.
3. Embedded
Application: Scenes where interior walls, columns, windows, etc. need to be flush with the building structure.
Features: The display screen is embedded in the wall or structure, the surface is flush with the surrounding decoration, and has strong visual integrity.
Applicable scenarios: outdoor open areas (such as next to highways and industrial parks), large displays that need independent support.
Features: The display screen is supported by a single column or a double column, with a height of several meters, suitable for long-distance viewing.
TENSHANG indoor outdoor advertising led cube integrates industrial design, electronic engineering and structural mechanics, achieving high-precision seamless splicing (≤0.15mm gap), intelligent heat dissipation (temperature rise ≤25℃) and strong protection (IP66 level), stable and durable system (100,000 hours of life), supports flexible customization of 3-6 surfaces, adapted to commercial, stage, outdoor and other scenarios, and creates the ultimate visual experience with technological balance.
Parameter of 3D Cube Signs Led
|
TS0002-C |
P2.5 |
P1.86 |
P2 |
P2.5 |
P3.075 |
P3 |
P3 |
P3.91 |
P2.5 |
P4 |
| Pixel Pitch |
2.5mm |
1.86mm |
2mm |
2.5mm |
3.075mm |
3mm |
3mm |
3.91mm |
2.5mm |
4mm |
| Brightness |
3500cd/㎡ |
3500cd/㎡ |
3500cd/㎡ |
3500cd/㎡ |
3500cd/㎡ |
3500cd/㎡ |
4500cd/㎡ |
4500cd/㎡ |
4500cd/㎡ |
4500cd/㎡ |
| Pixel Resolution |
128*128 / Faces |
1032*172 |
960*160 |
768*128 |
324*104 |
128*128 / Faces |
128*128 / Faces |
128*128 / Faces |
128*128 / Faces |
128*128 / Faces |
| Screen Size |
192*192*192 mm |
320*320*320 mm |
320*320*320 mm |
320*320*320 mm |
320*320*320 mm |
384*384*384 mm |
384*384*384 mm |
500*500*500 mm |
640*640*640mm |
640*640*640mm |
| Display Side |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
4 / 5 / 6 Faces |
| Display Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
RGB Full Color |
| Display Format |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
Videos/Pictures/Texts etc |
| Material |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
| Input Voltage |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
AC110V/220V ±10％ |
| Control Way |
WIFI APP Control |
WIFI APP Control |
WIFI APP Control |
WIFI APP Control |
WIFI APP Control |
WIFI APP Control |
WIFI APP Control |
WIFI APP Control |
Mobile APP |
WIFI APP Control |
| Weight |
8Kg |
26Kg |
26Kg |
26Kg |
26Kg |
17Kg / 20Kg |
20Kg |
35Kg |
30Kg |
32Kg |
| Application |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
Indoor |
Outdoor |
Indoor / Outdoor |
Indoor / Outdoor |
Indoor / Outdoor |
| Packing Size |
20*20*45 cm |
55*45*85 cm |
55*45*85 cm |
55*45*85 cm |
55*45*85 cm |
45*45*65 cm |
45*45*65 cm |
55*55*65 cm |
65*65*85 cm |
65*65*85 cm |
| Certificates |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
CE, RoHS, FCC |
Video of Rotating Led Cube Display Screen

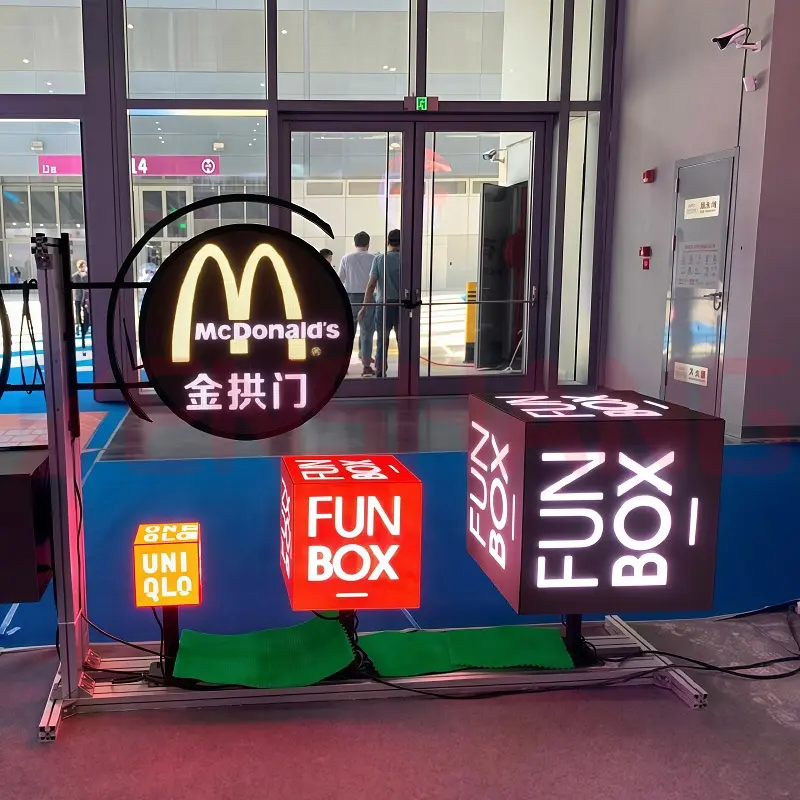

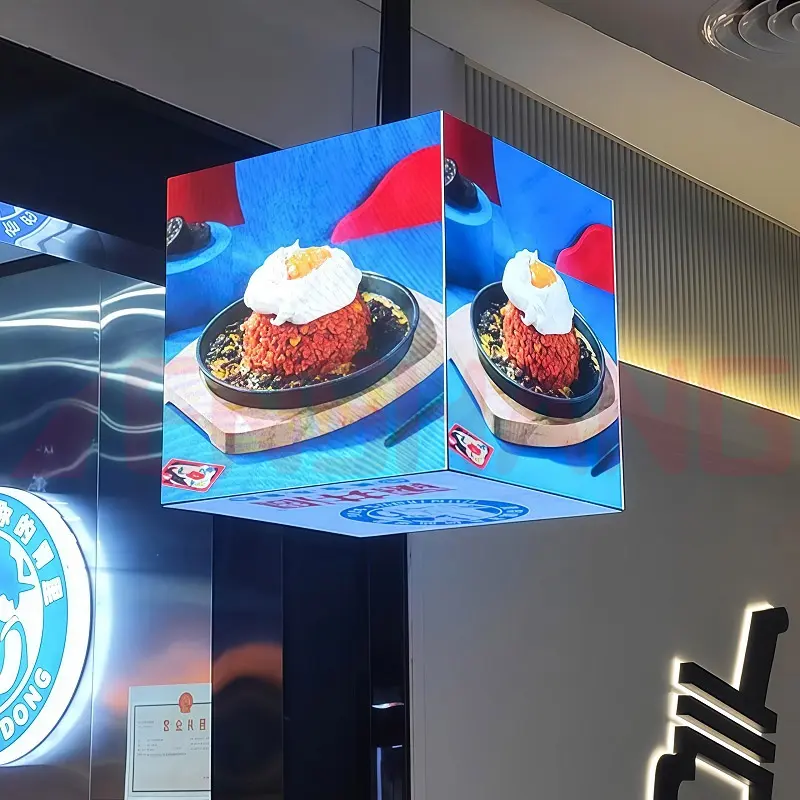

Case of Rotating Led Cube Display Screen
FAQ of Rubik's Cube Led Display
-
Q1. How To Choose The Right Cube Lumineux Led Sign?
-
Q2. What resolution should I usually choose when I use it under the eaves of the store??
-
Q3. Is the control system complicated?
-
Q4. Can I custom the size I need?
-
Q5. How many display modes are there to choose?
-
Q6. What payment methods can I choose?
-
Q7. Brand and after-sales service
-
Q8. What methods of transporting?
