Meeting Educate Teaching LED Display with Touch Screen
Features

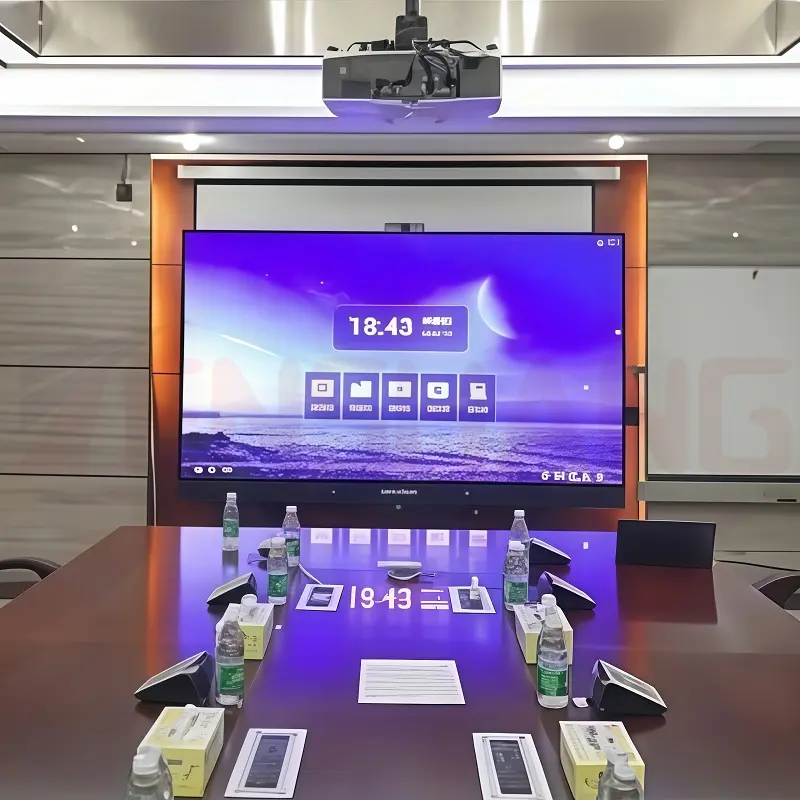

In fact, the LED screen of the conference all-in-one machine is a very practical new conference device, integrating the functions of display and interaction. It has many benefits, high brightness, clear picture resolution, and has been used for a long time. It can basically be used no matter what conference scene it is.

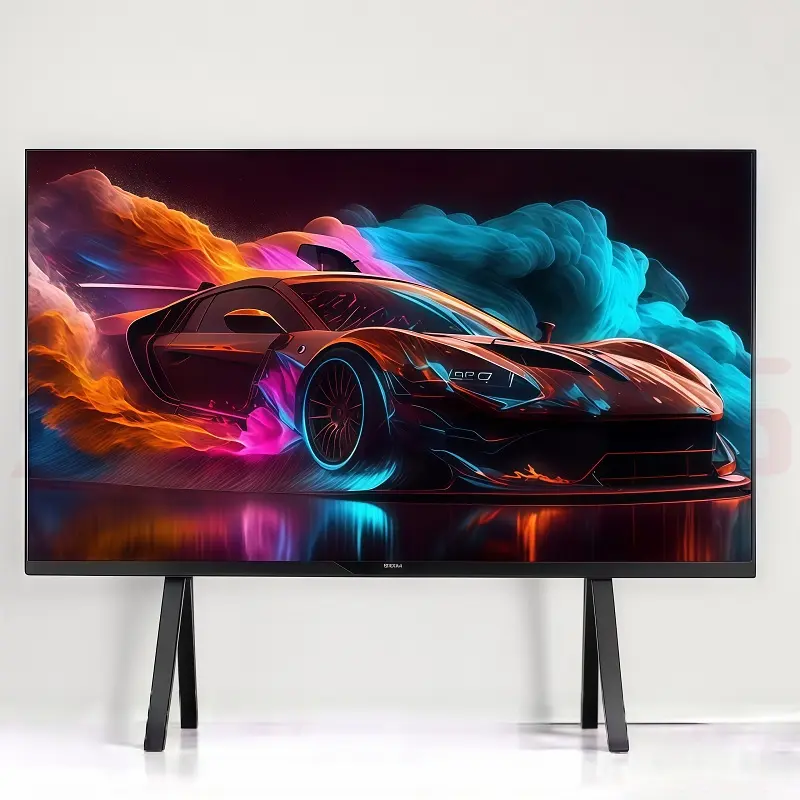

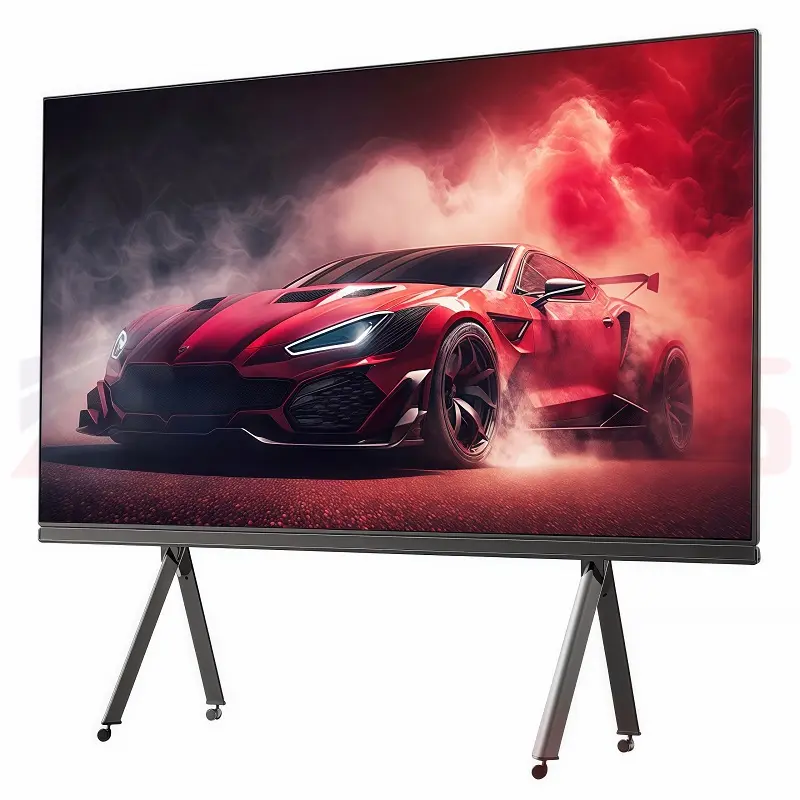

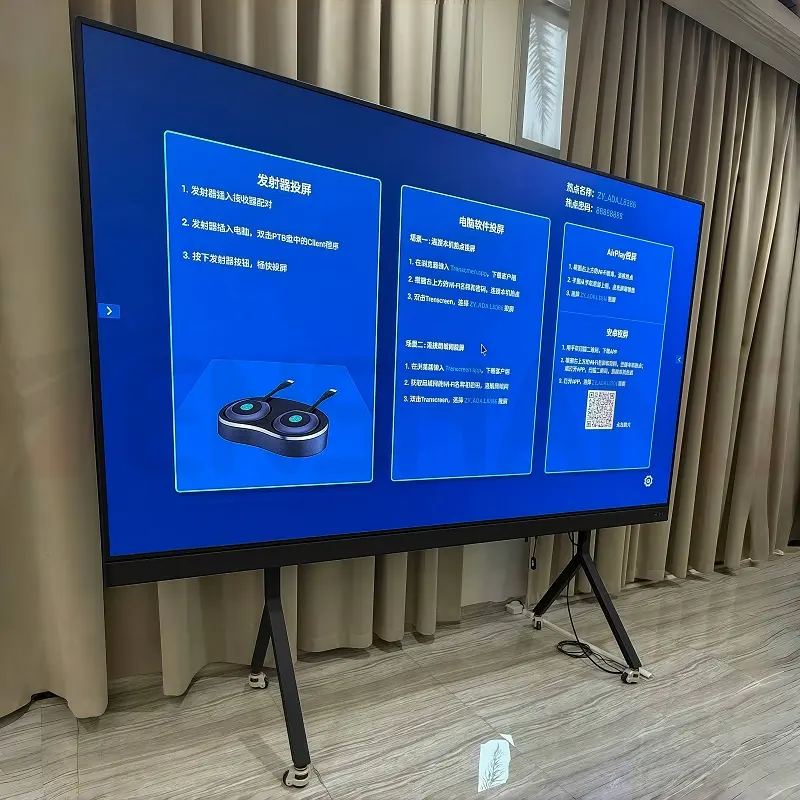

Its resolutions are 2K, 2.4K and 4K, which is also fast in refreshing speed, thin and lightweight, and is convenient to install. It can be hung on the wall and mounted on a mobile stand.

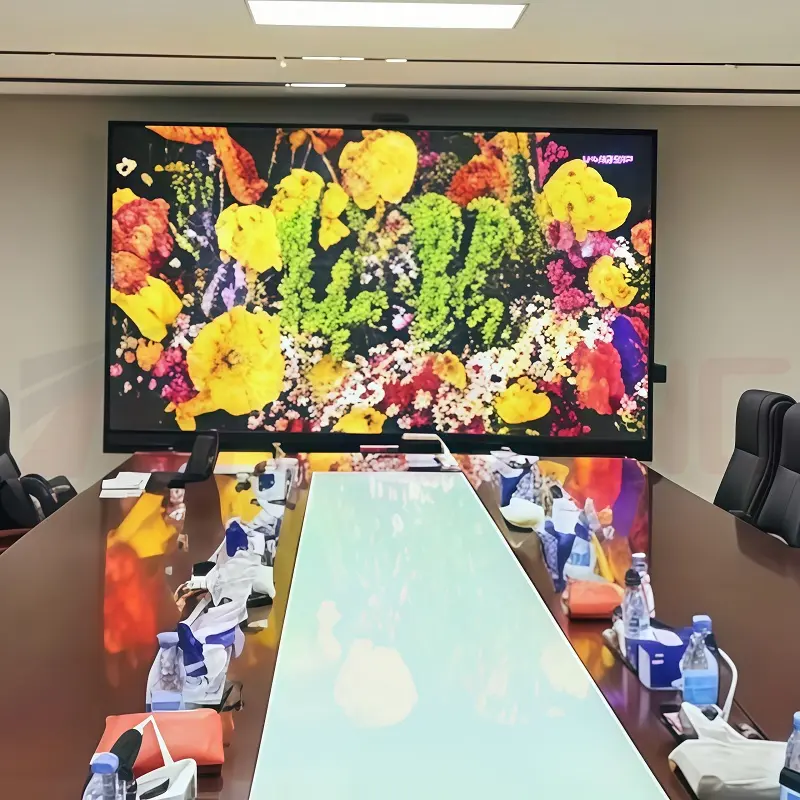

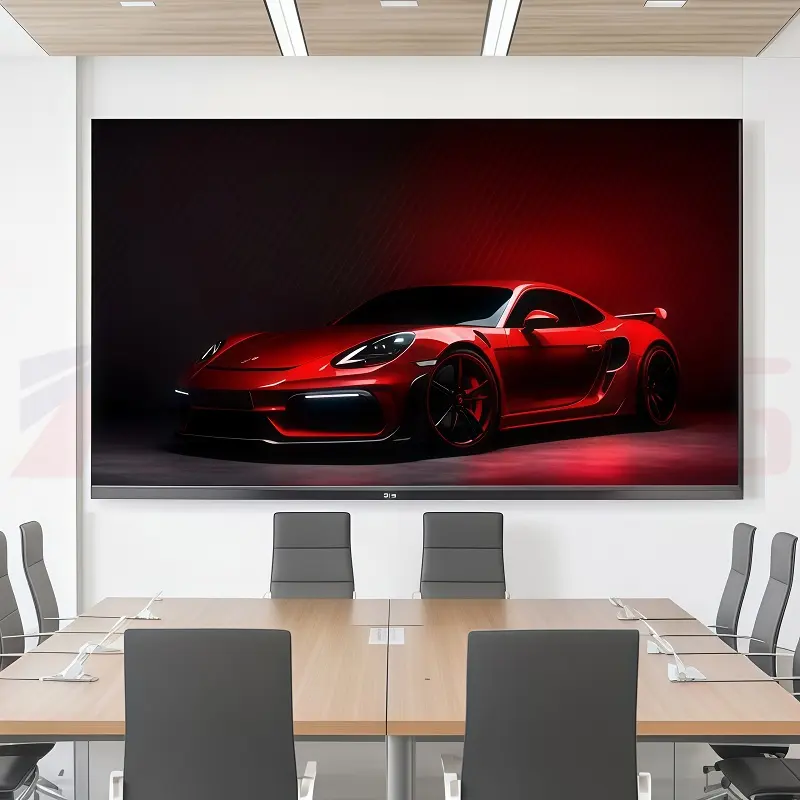

It is commonly used in corporate conference rooms, places where education and training are conducted, medical industry, government and public institutions, as well as financial industry, companies that engage in design and creativity, as well as hotels and exhibition centers. No matter how large or type of meeting it is, it can meet the needs and help improve the efficiency and quality of the meeting.
Wireless screen projection: supports wireless screen transmission for computers, mobile phones, and tablets, and supports up to four devices to display the screen simultaneously, which facilitates participants to quickly share content and achieve efficient interaction.
Multiple display modes: It has multiple display modes. The TENSHANG conference all-in-one machine supports standard mode, soft mode, cinema mode, conference mode, eye protection mode, etc., and can be switched according to different usage scenarios and needs.
Touch interaction: The LED display of the TENSHANG conference machine supports touch functions, and users can write, annotate, operate, etc. by touching the screen, which is as convenient as using a tablet, enhancing the interactivity and participation of the meeting.
Integrated functions: Integrates video conferencing, collaborative whiteboard, file sharing, voice interaction and other functions. The TENSHANG conference all-in-one machine supports powerful video processing operations through its independently developed main control chip, real-time collaboration and visual operations of conferences.
Parameter
| TS0006-HYA | P1.25 | P1.56 | P0.93 | P1.87 | P1.25 | P2.5 |
| Pixel Pitch | 1.25mm | 1.56mm | 0.93mm | 1.87mm | 1.25mm | 2.5mm |
| Lamp Beads | SMD1010 | SMD1212 | Four in one | SMD1515 | SMD1010 | SMD2020 |
| Screen Resolution | 2.5K | 2K | 4K | 2K | 4K | 2K |
| Resolution (Pixel) | 2400x1350 | 1920x1080 | 3840*2160 | 1920x1080 | 3840x2160 | 1920x1080 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 500 nits | 500 nits | 450 nits | 500 nits | 500 nits | 600 nits |
| Module Size (mm) | 300*168.75*3 | 300*168.75*3 | 300*168.75*3 | 300*168.75*3 | 300*168.75*3 | 300*337.5*3 |
| Product Size (mm) | 3000*1687.5 | 3600*2025 | 4800*2700 | |||
| Gray Grade (Bits) | 14 | 14 | 14 | 14 | 14 | 14 |
| Max. Power Consumption (W/㎡) | 2800 | 1900 | 4400 | 3260 | 7125 | 5900 |
| Avg. Power Consumption (W/㎡) | 940 | 635 | 1470 | 1085 | 2375 | 1970 |
| Driving Mode | 1/60 Scan | 1/54 Scan | 1/46 Scan | 1/90 Scan | 1/60 Scan | 1/27 Scan |
| Input Voltage | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Working Temperature (ºC) | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 | -20～+60 |
| Application | Indoor IP31 | Indoor IP31 | Indoor IP31 | Indoor IP31 | Indoor IP31 | Indoor IP31 |
| Maintenance Way | Front Service | Front Service | Front Service | Front Service | Front Service | Front Service |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Processor | NovaStar /A5s Plus | NovaStar /A5s Plus | NovaStar /A8s-PRO | NovaStar /A5s Plus | NovaStar /A5s Plus | NovaStar /A5s Plus |
| Certificates | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC | CE, RoHS, FCC |
Videos
Project
FAQs
-
Q1. Can multiple screens be displayed at the same time (split screen)?
-
Q2. Is remote meeting feature supported? Need extra equipment?
-
Q3. What is the difference between LED conference all-in-one machine and projector?
-
Q4. What are the sizes of LED conference all-in-one machines?
-
Q5. How effective is the LED conference all-in-one display?
-
Q6. What are the functions of LED conference all-in-one screen?
-
Q7. Is the installation and maintenance of LED conference integrated TV wall convenient?
-
Q8. What are the application scenarios of LED conference all-in-one machines?
LED conference all-in-one machine is suitable for conference rooms, classrooms, multi-function halls, lecture halls, exhibition halls and other scenarios.
