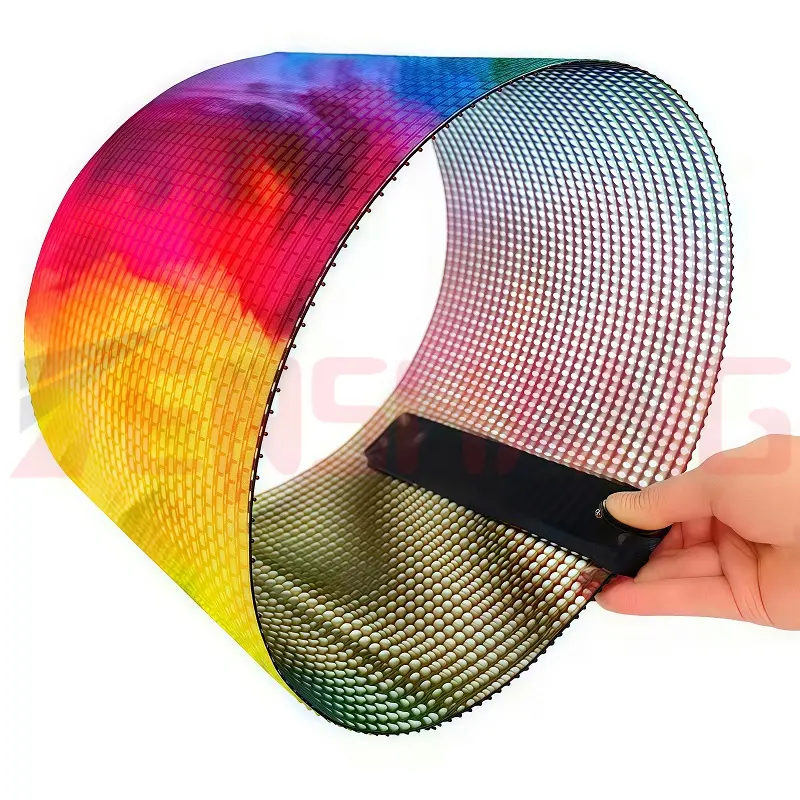

Transparent Holographic Led Screen Display Film Flexible Panel
What is holographic led screen?
TENSHANG holographic transparent led screen is an innovative display device that integrates LED display technology, the characteristics of transparent materials, and the principles of holographic imaging. It not only has the basic function of presenting dynamic or static images like traditional displays but also breaks visual barriers with high transparency. Moreover, through a special optical design, it creates a 3D stereoscopic floating holographic visual effect, bringing an immersive experience with strong impact.
The core advantages of this display are particularly prominent: its ultra-high transparency allows it to barely block the view behind when displaying content; the 3D holographic effect endows the images with vivid spatial depth; and its ultra-thin and lightweight form, along with high-brightness display performance, enables it to adapt to diverse environmental needs.
Its true value innovation lies in completely subverting the inherent perception that "display devices must block the line of sight". When traditional screens are trapped in the contradiction between "displaying content" and "maintaining spatial transparency", it achieves a perfect balance between the two through technological breakthroughs. For this reason, TENSHANG LED holographic transparent display is not only suitable for various scenarios that need to balance information transmission and spatial integrity but is also regarded as an important direction for the development of future transparent display technology, opening up new possibilities for the display field.
1. Fundamentals of Transparent Display

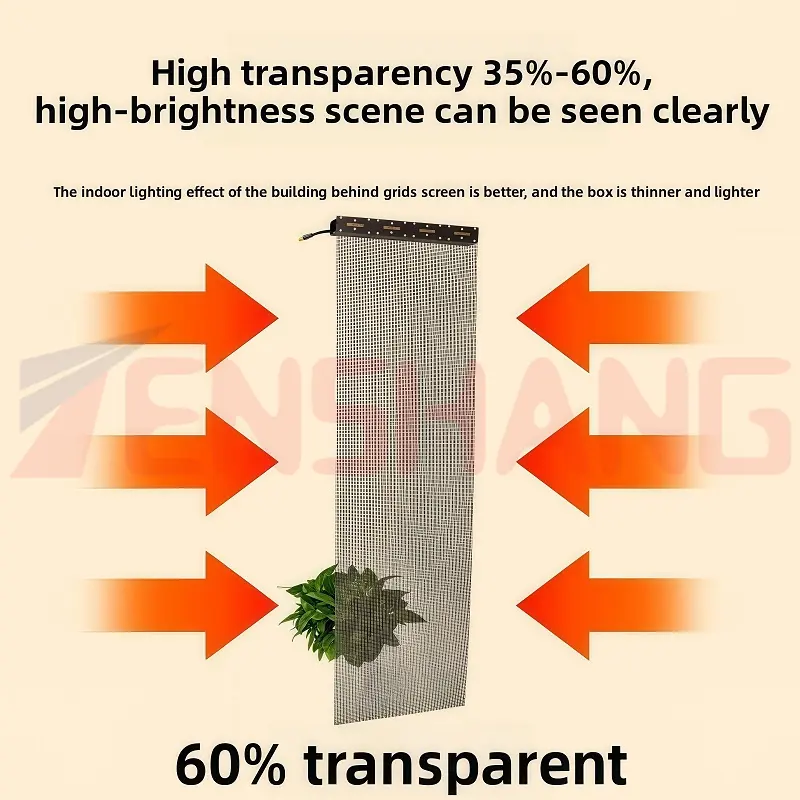

Based on the principle of "point-controlled luminescence": LED beads (usually micro SMD LEDs) are distributed in a dot-matrix pattern on a transparent substrate. Only the luminous points display content, while the non-luminous areas remain transparent. A complete image is formed through the persistence of vision effect of the human eye.
2. Realization of Stereoscopic Effect
Optimize the light-emitting angle of LEDs to project light in specific directions, enhancing the spatial depth of the image;
Combine 3D modeling content to simulate stereoscopic scenes through perspective changes of dynamic images.
1. Commercial window display:

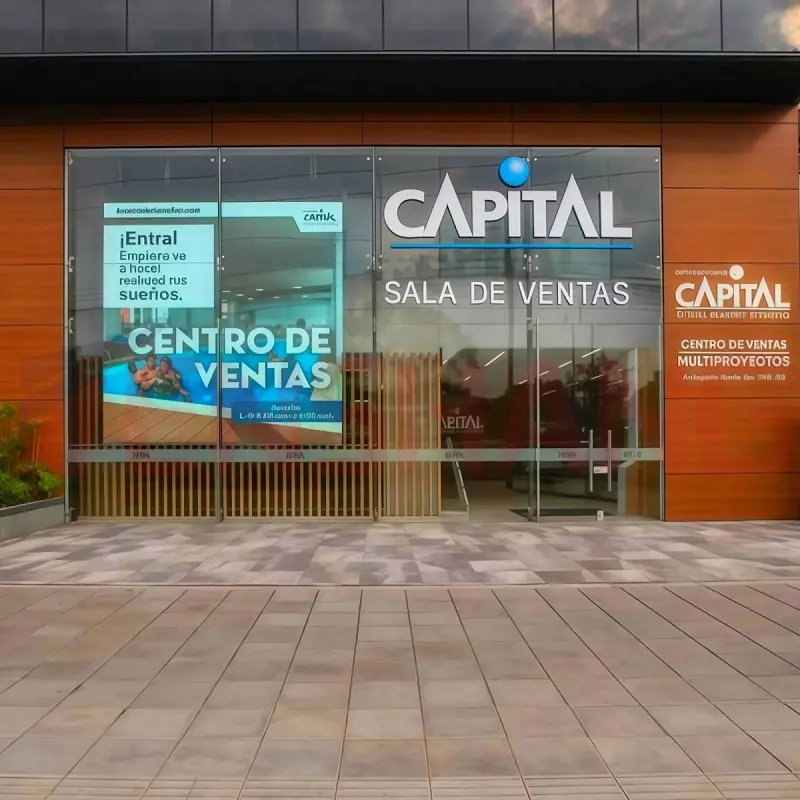

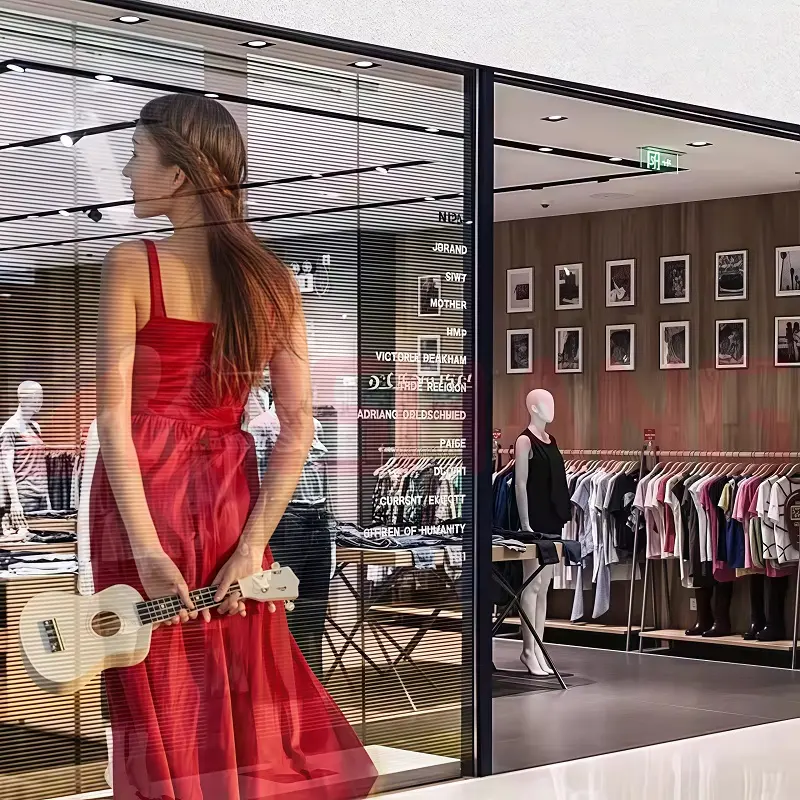

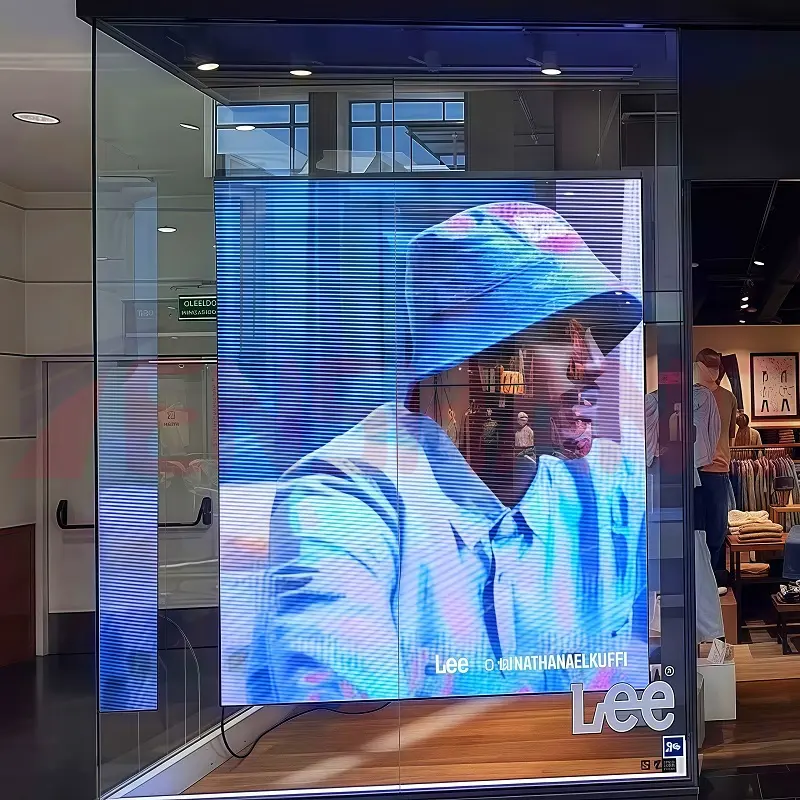

Attached to the glass of shopping mall windows, it plays product advertisements or dynamic demonstrations (such as cosmetics trial effects, electronic product function displays). It does not block the physical objects inside the window and can attract passers-by's attention through floating images. It is commonly seen in luxury stores, technology product stores, etc.
2. Building curtain walls and interior decoration:

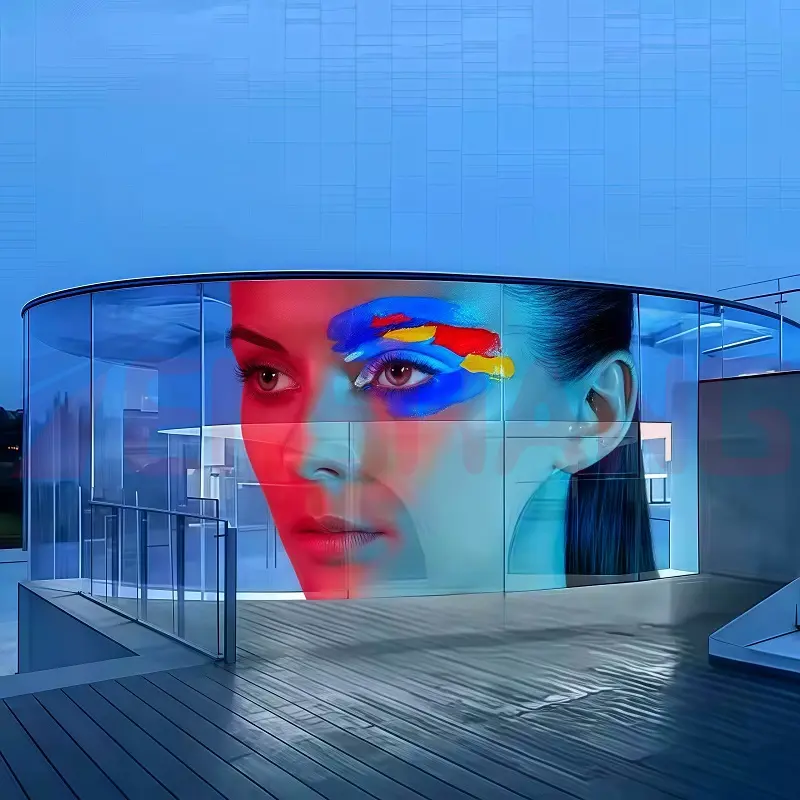

As part of the building's glass curtain wall, it maintains the transparency of the building during the day and turns into a giant display screen at night, playing city night view animations. Indoors, it can be used for partition walls and screens, with both decorative and information display functions (such as hotel lobbies, office building receptions).
3. Cultural tourism and entertainment:
In museums and science and technology museums, it is used to display 3D models of cultural relics or dynamic demonstrations of scientific principles, allowing audiences to "see through" the screen to observe details. In concerts and stage plays, it serves as a background screen to create a stage effect combining virtual and real.
4. Transportation and public facilities:
Applied to glass partitions in airports and subway stations, it displays flight/train information. Or used as smart car windows, providing navigation, road conditions and other content without affecting the view.
Parameter of flexible led holographic screen
| TS0008-QX | X3.91 | X3.91 | X6.25 | X7.81 | X10.4 |
| Pixel Pitch | 3.91mm | 3.91mm | 6.25mm | 7.81mm | 10.4mm |
| Led Chip | 1414 | 1515(Integrate) | 1921(Separation) / 2020(Integrate) | ||
| Driver IC | SFD455 / ICN2038 | Integrate | |||
| Control System | NovaStar / Colorlight / Mooncell (optional) | ||||
| Light Board Size | 1000*125mm / customized size | ||||
| Cabinet Size | 1000*500mm / customized size | ||||
| Cabinet Resolution | 256*128 | 256*128 | 160*80 | 128*64 | 96*48 |
| Density | 65536 dots/㎡ | 65536 dots/㎡ | 25600 dots/㎡ | 16384 dots/㎡ | 9216 dots/㎡ |
| Best Viewing Distance | ≥4m | ≥4m | ≥6m | ≥7m | ≥10m |
| Transparency | ≥70% | ||||
| Maximum Power Consumption/㎡ | ≤400W | ≤800W | ≤800W | ≤800W | ≤800W |
| Average Power Consumption/㎡ | ≤200W | ≤260W | ≤260W | ≤260W | ≤260W |
| Brightness | 200-4000cd/㎡ | 200-5000cd/㎡ | 200-4500cd/㎡ | 200-4000cd/㎡ | 200-3500cd/㎡ |
| Refresh Rate | ≤7680Hz | ||||
| Grayscale | 16bits | ||||
| Material | Aluminum Profile | ||||
| Input Voltage | AC110-240V 50/60Hz | ||||
| Power Supply Mode | Battery (power supply/movable power supply optional) | ||||
| Working Temperature | -20℃ ~ 50°C | ||||
| Installation Method | Stick | ||||
| Use Environment | Indoor (outdoor optional) | ||||
| Cabinet Weight | ＜4.5Kg | ＜4.3Kg | ＜4.3Kg | ＜4Kg | ＜4Kg |
Video of holographic led screen 3d
Project case of led holographic invisible transparent screen
FAQs
-
Q1. Is the transparency of the led holographic invisible screen related to the pixel density?
-
Q2. How effective does holographic transparent LED display display display in a strong light environment?
-
Q3. How high can the pixel density of LED holographic transparent displays be?
-
Q4. What is the display viewing angle of the holographic film LED screen?
-
Q5. Can LED holographic film be installed on surface objects?
-
Q6. What are the unique applications of LED holographic transparent displays in the retail industry?
-
Q7. Does the installation of LED holographic transparent display have requirements for ambient temperature?
